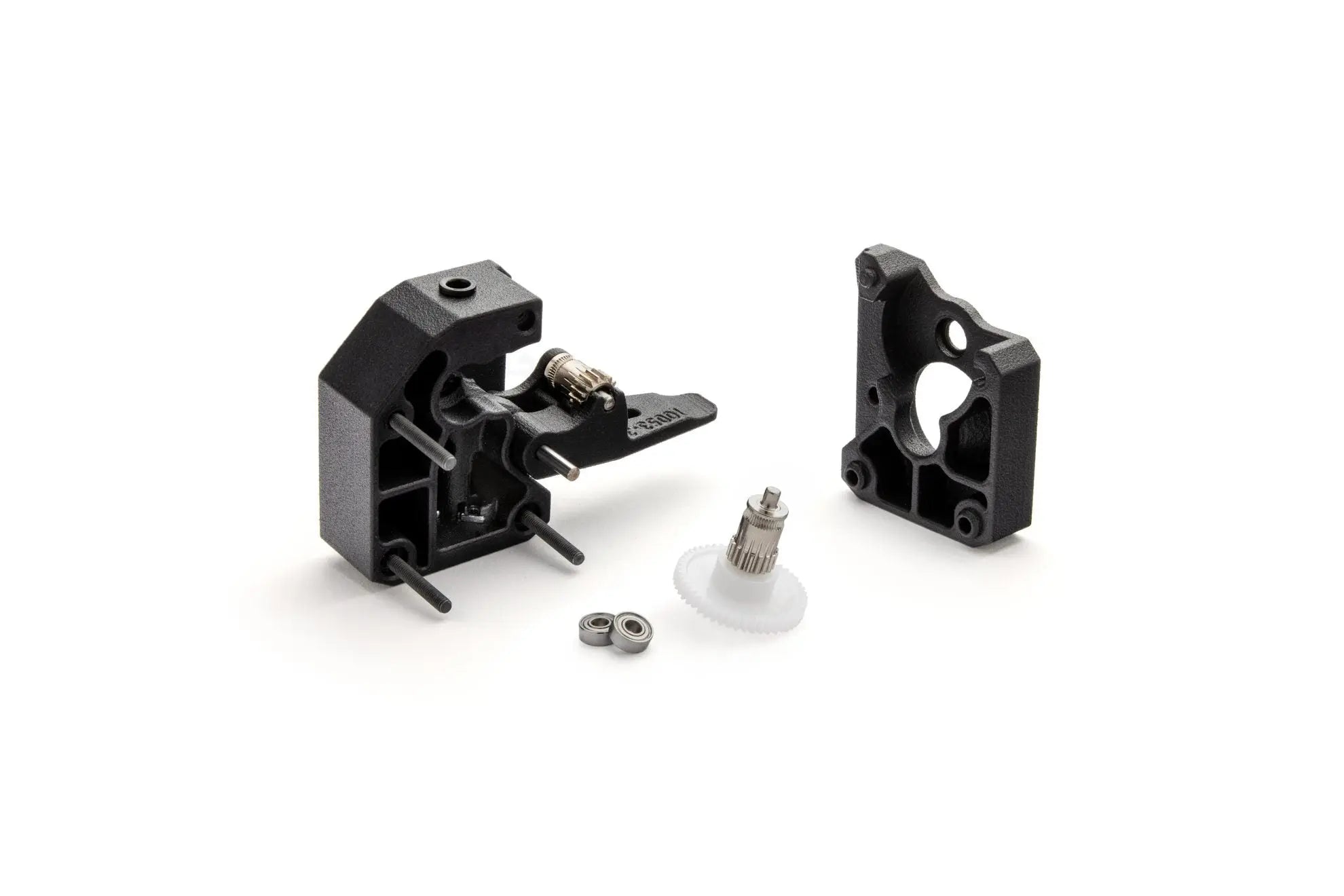

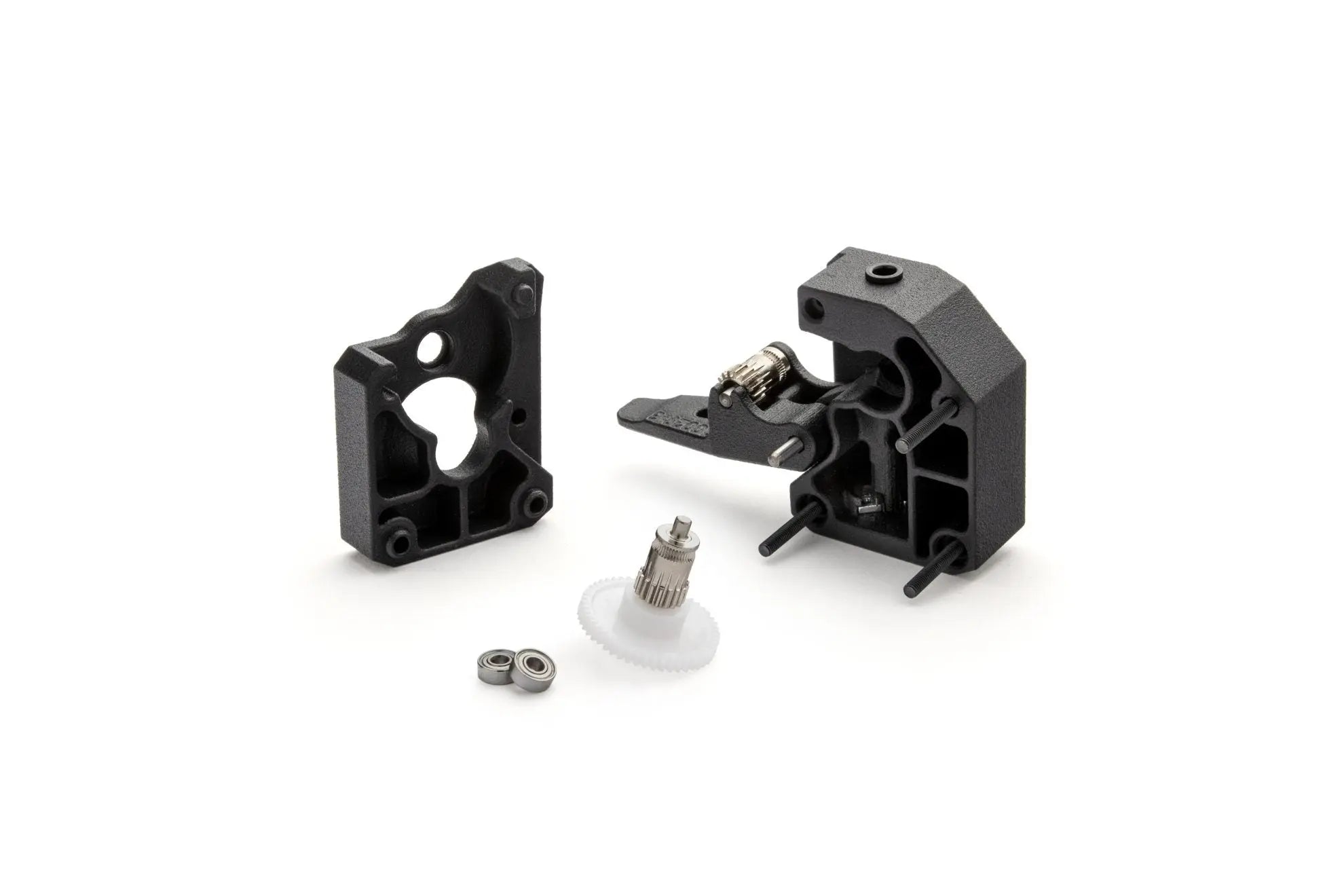

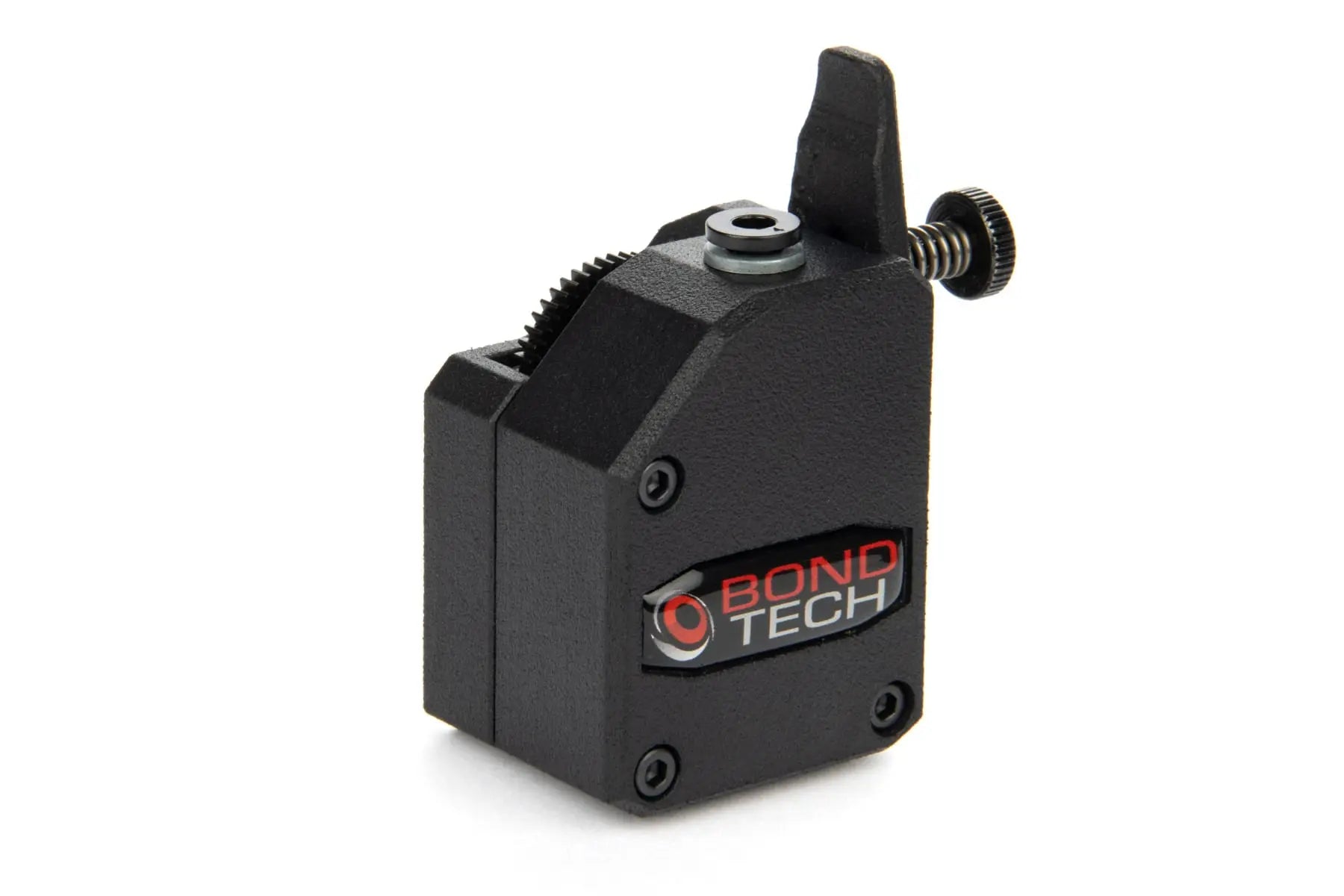

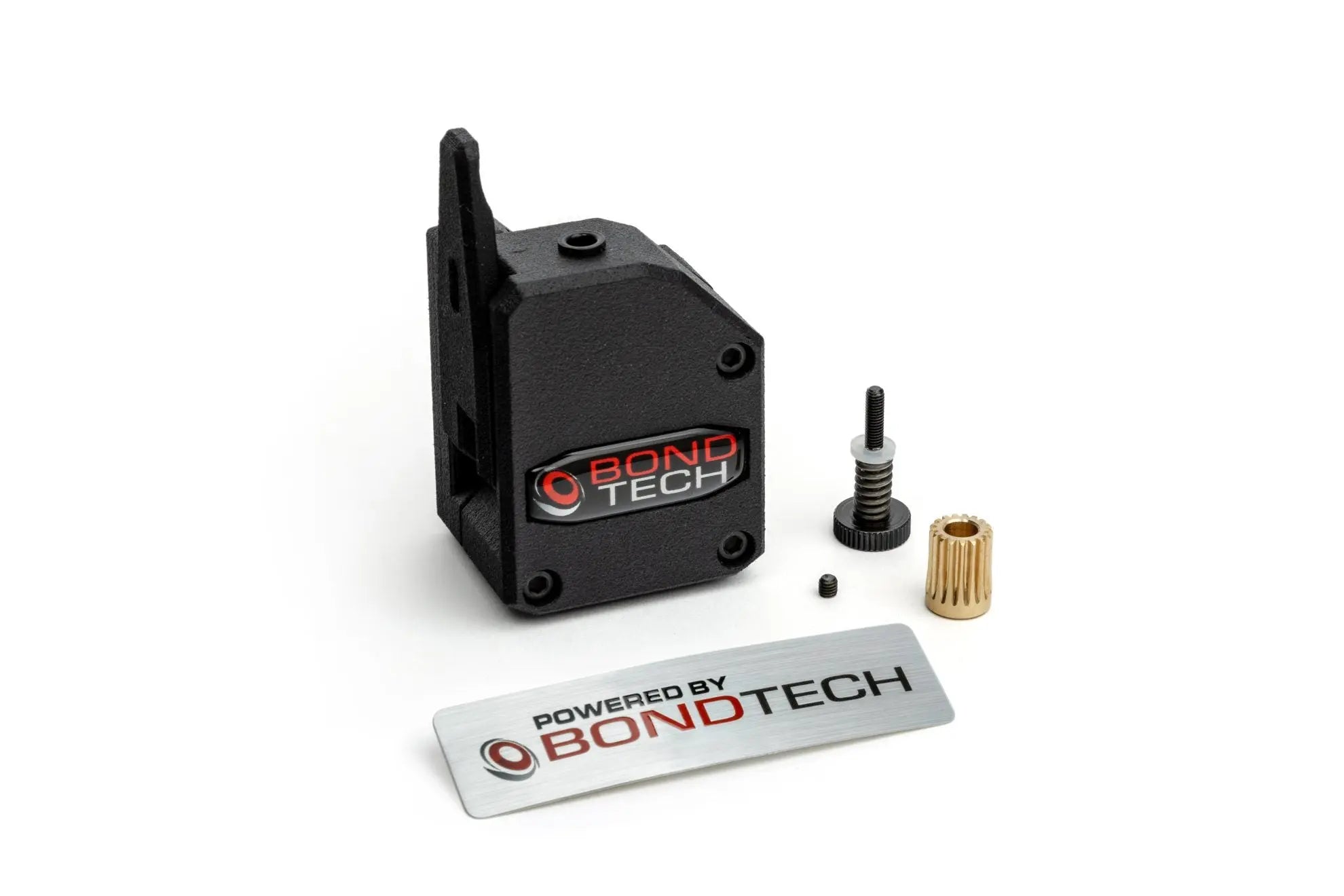

This BMG extruder is designed specifically for Mosquito hotends and uses a standard Nema 17 motor with a 5mm shaft. As long as your printer setup accommodates these specifications and utilizes a groove mount, it should be compatible.

Yes, the design is versatile enough to handle both configurations. Its compact, lightweight build makes it an excellent choice for reducing weight on the print head in direct drive setups, while still providing the torque needed for Bowden systems.

Absolutely. The extruder features hardened steel drive gears specifically engineered to withstand the wear and tear caused by abrasive materials, ensuring consistent performance over time.

The 3:1 gear ratio provides significantly higher torque compared to standard extruders. This allows the motor to push filament with greater force and precision, which helps prevent slipping and improves extrusion consistency during complex prints.

The Dual-Drive system grips the filament from both sides simultaneously. This creates a more secure hold, significantly reducing the likelihood of filament grinding or slipping, which leads to more reliable and accurate extrusion.

Yes, it features an adjustable tension mechanism. This allows you to fine-tune the grip pressure based on the filament material you are using, ensuring optimal performance for everything from flexible TPU to rigid PLA.
