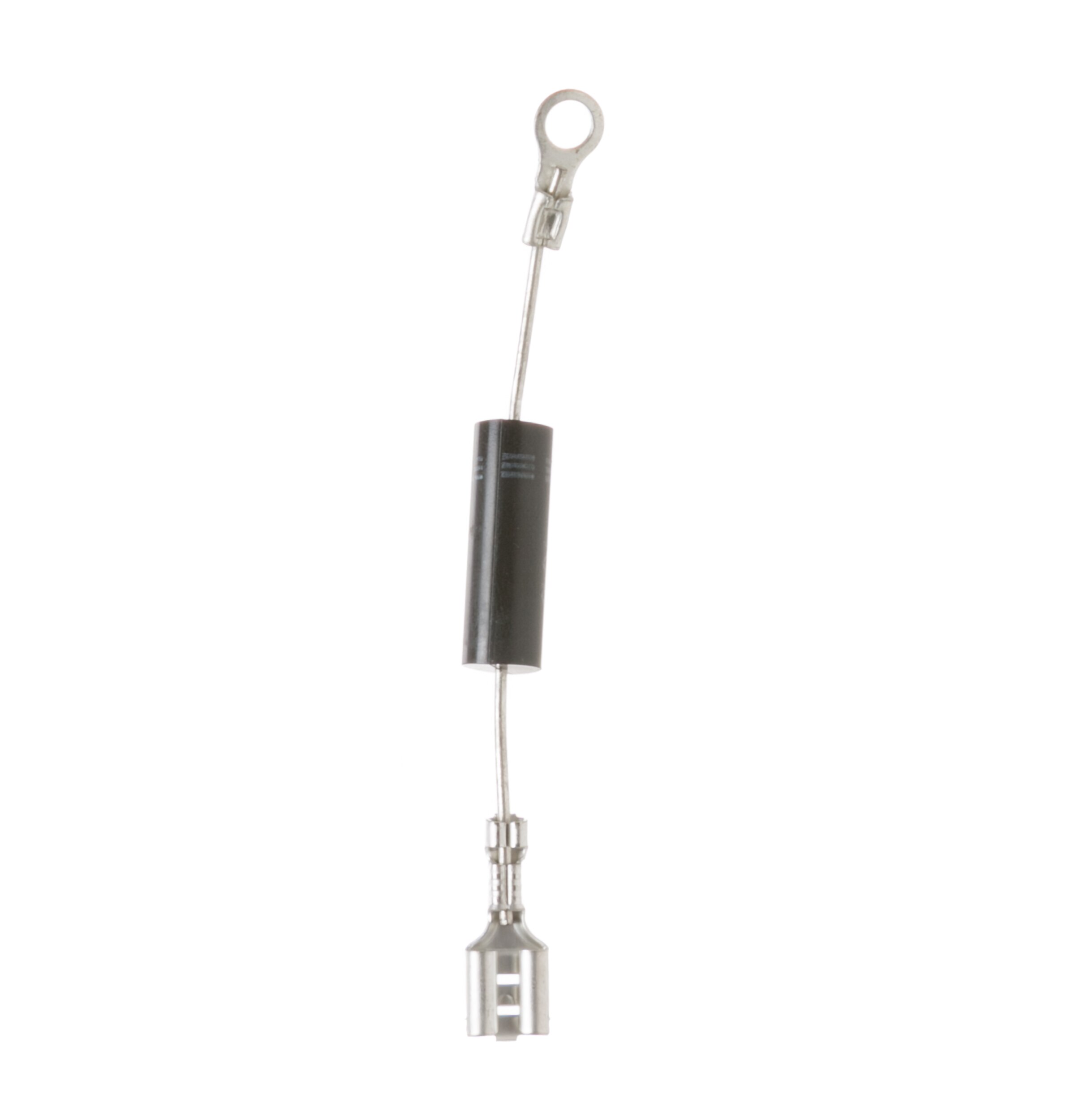

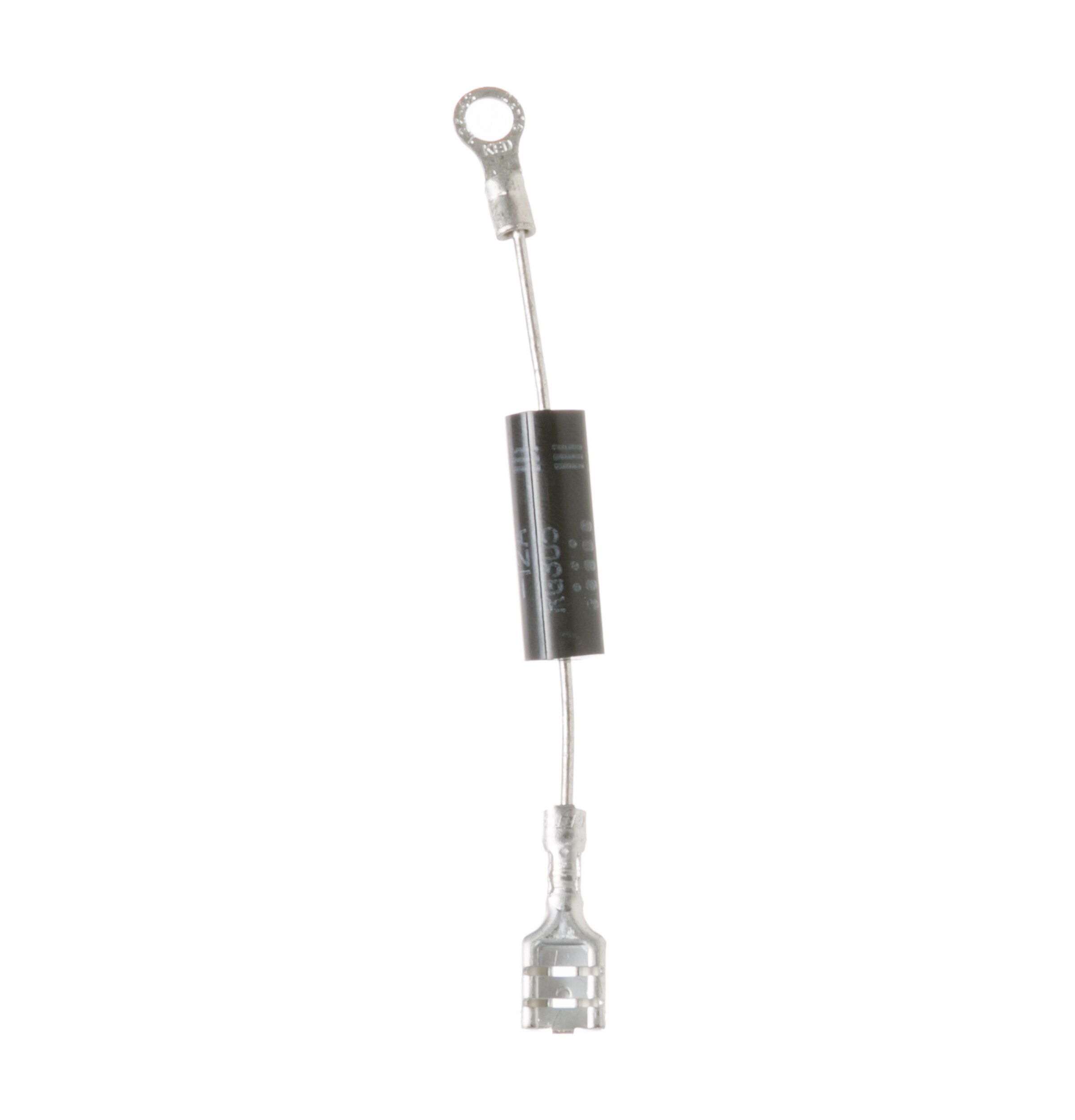

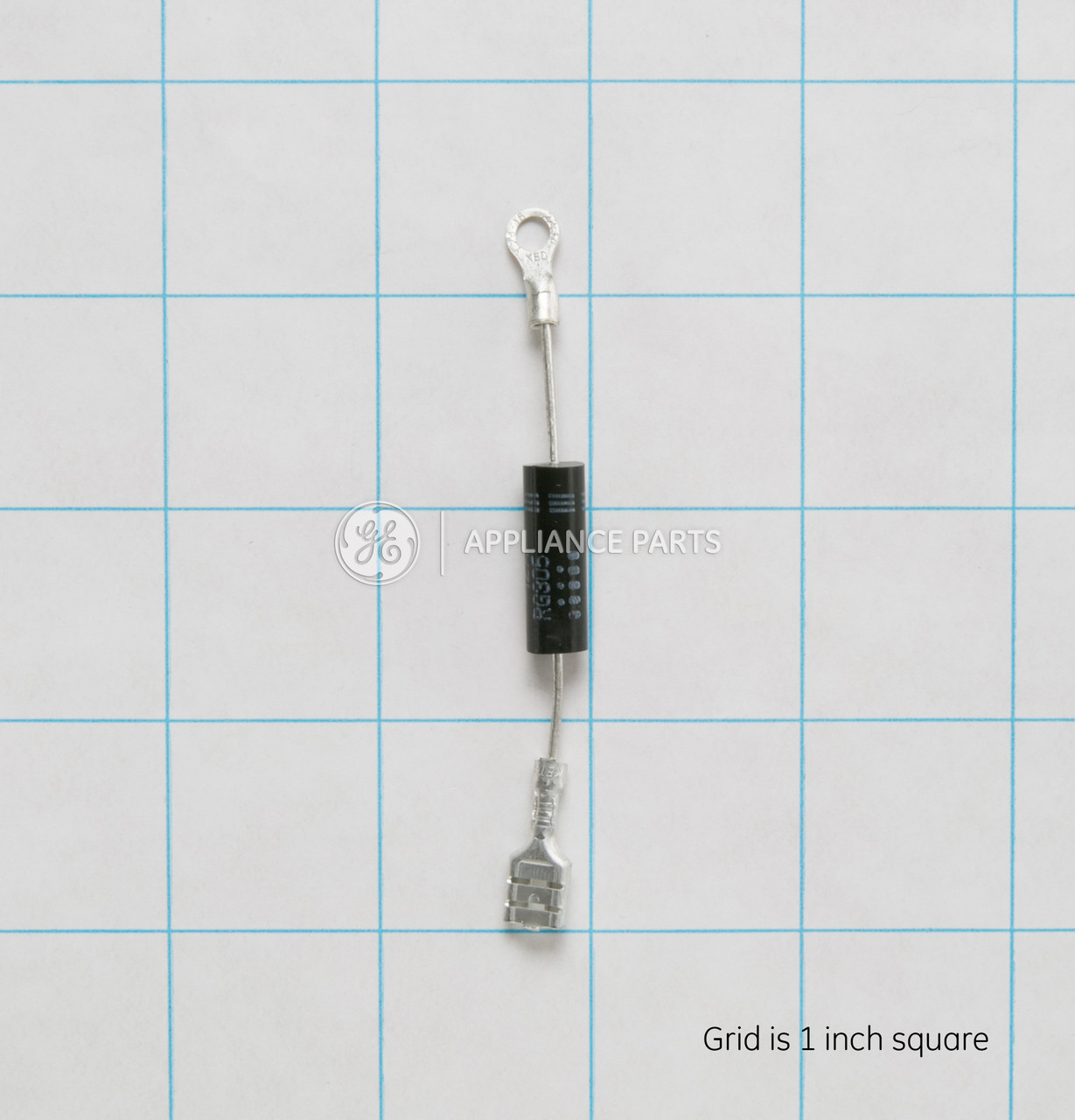

GE Appliances High Voltage Diode

If your microwave runs and the light turns on but the food stays cold, the high voltage diode is a common culprit. While other parts like the magnetron or capacitor can also cause this, the diode is a frequent point of failure and a relatively simple component to test or replace.

Yes, this specific diode is an OEM component designed for GE, Hotpoint, and RCA models. Because many of these brands share manufacturing platforms, it replaces numerous older part numbers across those product lines.

Yes, orientation is critical. The diode is polarized, meaning it must be installed in the correct direction to function. The banded side features a #8 ring terminal, while the non-banded side uses a 1/4-inch quick connect, which helps ensure you connect it properly.

You will generally need a screwdriver to remove the microwave's outer casing and a pair of needle-nose pliers to disconnect the existing terminals. Always ensure the microwave is unplugged and the high-voltage capacitor is safely discharged before attempting any repair.

While generic parts exist, using a genuine GE component ensures the electrical specifications match your microwave's exact requirements. Given the high-voltage nature of this part, using the manufacturer-recommended OEM component is the safest and most reliable choice for long-term performance.
