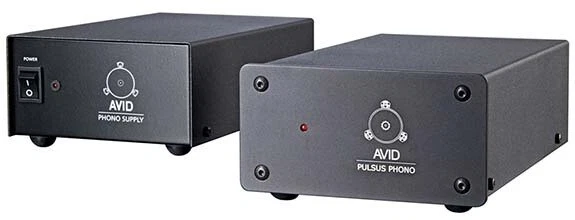

Avid Pulsus Phono Stage

Yes, the Pulsus is designed to handle both cartridge types. It features adjustable gain settings of 40dB, 60dB, and 70dB to accommodate the output differences between Moving Magnet and Moving Coil designs.

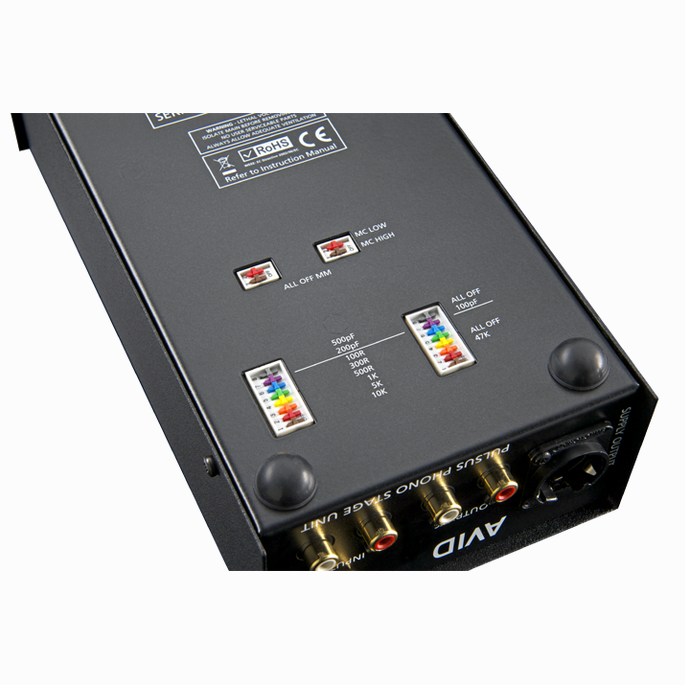

The switches for gain, resistance, and capacitance are located on the underside of the chassis. While this keeps the front panel clean and minimalist, you will need to lift or tilt the unit to make adjustments when swapping cartridges.

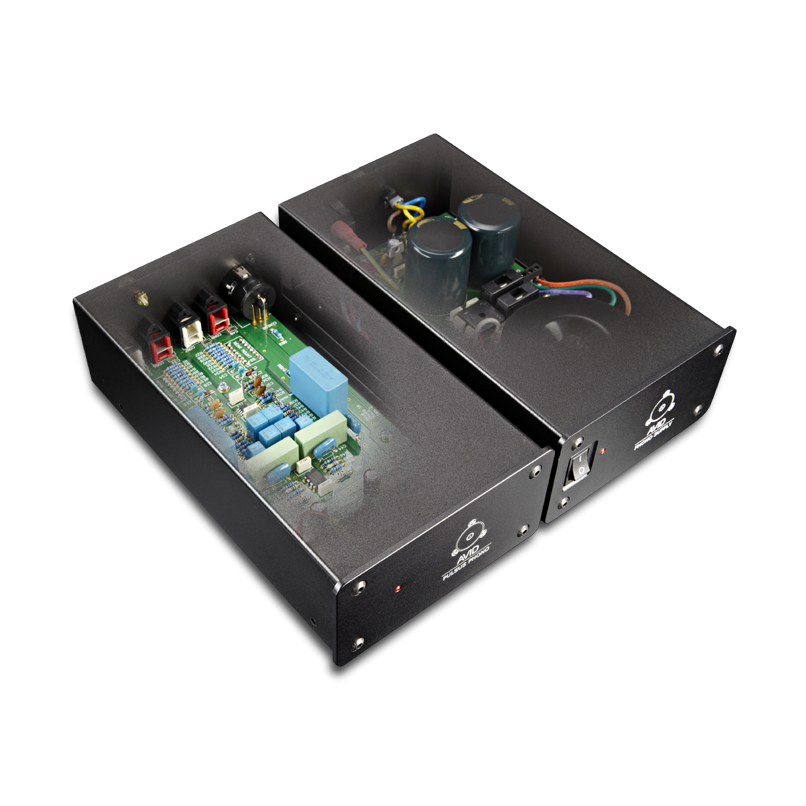

The external regulated power supply keeps the transformer and its associated electrical noise away from the sensitive audio circuitry inside the main unit. This separation helps lower the noise floor, resulting in a cleaner, more detailed signal.

The Pulsus offers a wide range of resistance settings from 100R to 47K and capacitance settings from 100pf to 500pf. This flexibility allows you to fine-tune the loading to match the manufacturer's specifications for almost any modern cartridge.

The unit is hand-assembled using military-grade components, which are selected for their durability and consistency. This construction approach ensures the device maintains its performance integrity over many years of regular use.

The RIAA curve accuracy of 5Hz to 70kHz ±0.5dB indicates that the phono stage is highly precise in restoring the frequency balance of your vinyl records. This ensures that the music you hear is faithful to the original recording without unnatural coloration.
