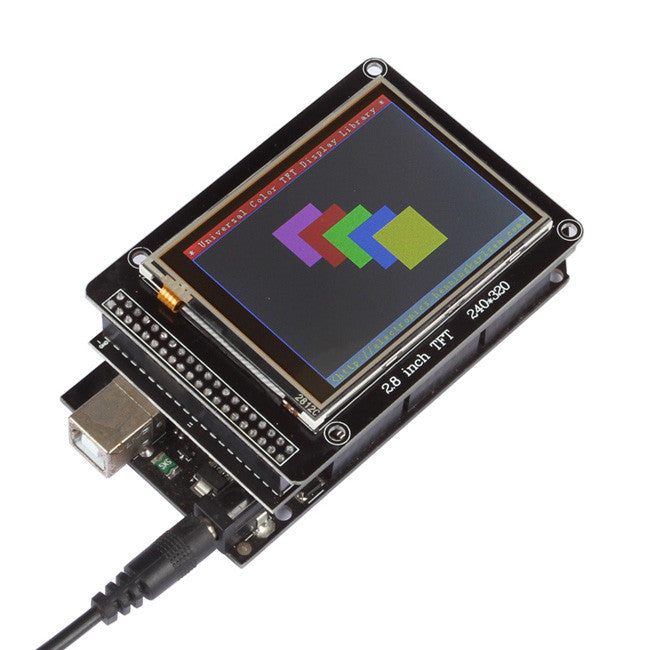

SainSmart Mega2560 R3 TFT LCD Shield Kit

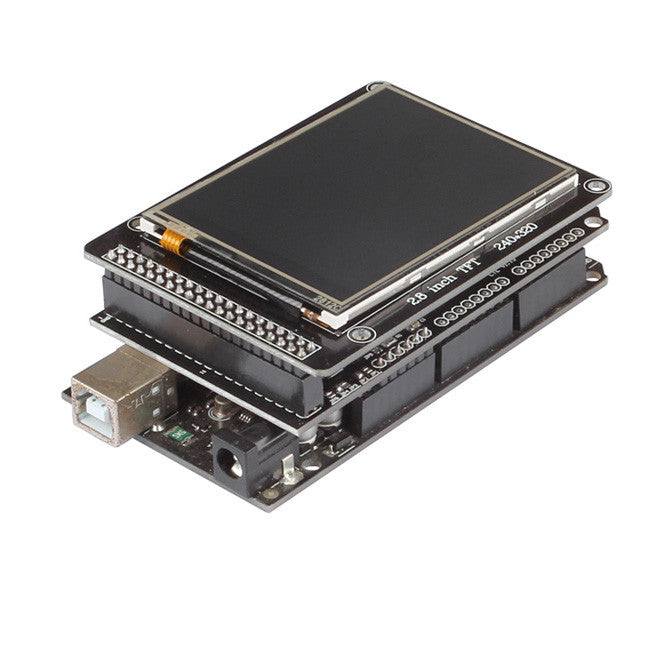

No, this is a plug-and-play kit. The included shield is designed to stack directly onto the Mega2560 board, eliminating the need for soldering or complex wiring.

Yes, the kit is fully compatible with the standard Arduino development environment. You will need to install the appropriate TFT and touch controller libraries to interface with the display.

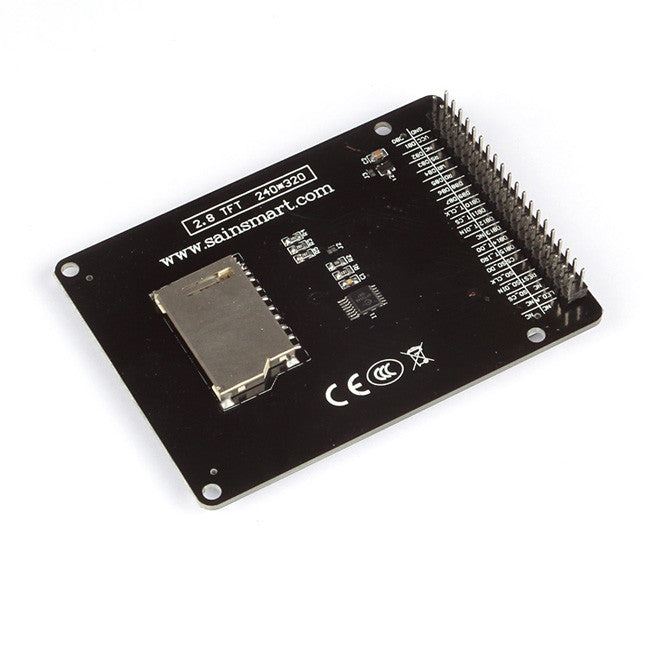

Absolutely. The integrated SD card reader is perfect for storing data logs, images, or configuration files for your projects, provided you use a compatible library to handle the file system.

The shield acts as a bridge that maps the display's pins to the Mega2560, saving you from manually wiring dozens of connections. It ensures a reliable, stable physical connection that is much less prone to loose wires or short circuits.

This specific shield is designed for the Arduino Mega form factor. While the display itself might be compatible with other boards, the shield's pinout is physically configured for the Mega2560 and will not fit an Uno.

The board operates at 5V, but for stable performance—especially when driving the display—it is recommended to use an external power supply between 7V and 12V connected to the DC jack.
