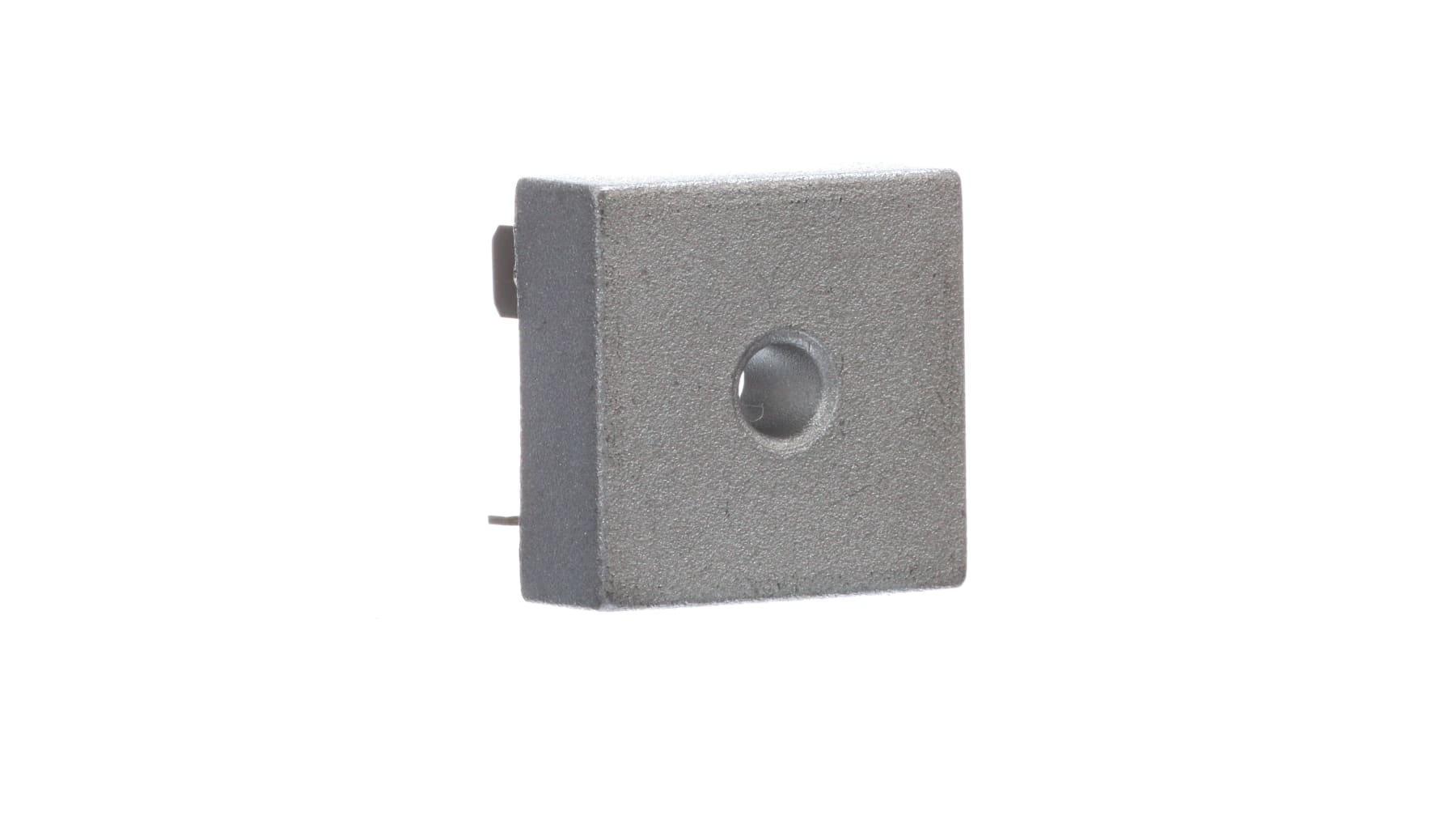

HVCA KBPC3510 Bridge Rectifier
Best reliable component for DIY power supply repairs and electronic projects.
This single-phase bridge rectifier provides efficient power conversion with a robust, isolated design. It is built to handle high voltage and current loads, ensuring reliable performance in industrial power supply applications.
$6.08
at
RS Components
Who it's for
- Industrial hobbyists building high-power DC motor controllers or chargers
- Engineers prioritizing thermal management in compact electronic enclosures
- Repair technicians looking for a drop-in replacement for standard rectifiers
Who should skip it
- Designers working with extremely limited space for cooling components
- Efficiency-focused builders seeking low-loss Schottky alternatives for low-voltage projects
- Manufacturers looking for surface-mount components for high-speed production lines
Performance breakdown
Thermal Management
The isolated metal case design excels at dissipating heat under load.
Voltage Handling
Robust 1000V peak reverse voltage rating handles high-stress industrial power environments.
Efficiency
Low reverse leakage current ensures minimal energy waste during rectification cycles.
Durability
Diffused junction technology provides consistent, long-term reliability in demanding applications.
Installation Ease
Standard through-hole mounting simplifies integration into most common circuit board layouts.
Surge Resilience
Capable of handling 400A surges, offering solid protection against transient spikes.
Key Specs
Manufacturer Part Number
KBPC3510
Manufacturer
HVCA
Operating Temperature
-65 to 150 °C
Number of Pins
4
Primary Type
Bridge Rectifier
Package Type
KBPC
Maximum Junction Temperature
150 °C
Mounting Type
Through Hole
Repetitive Peak Voltage
1 kV
RMS Voltage
700 V
