Flywoo UNICON UPL Capacitor

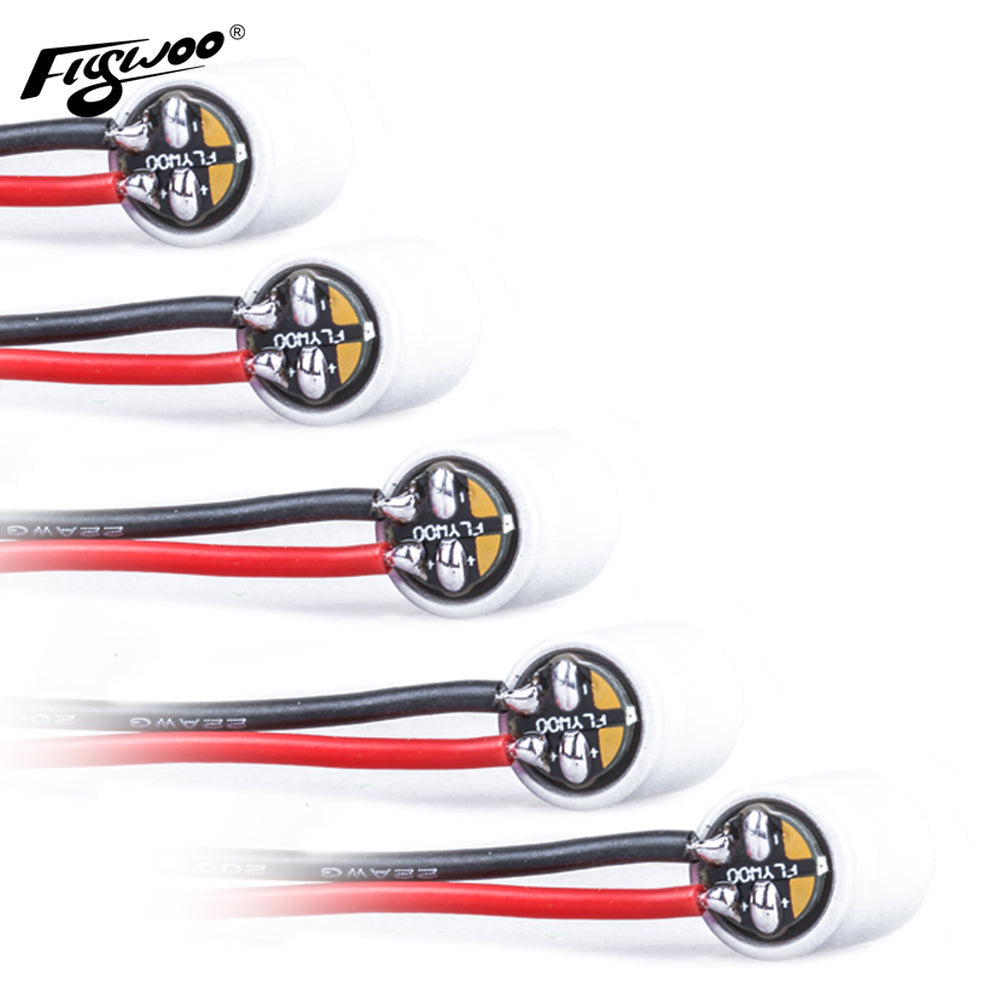

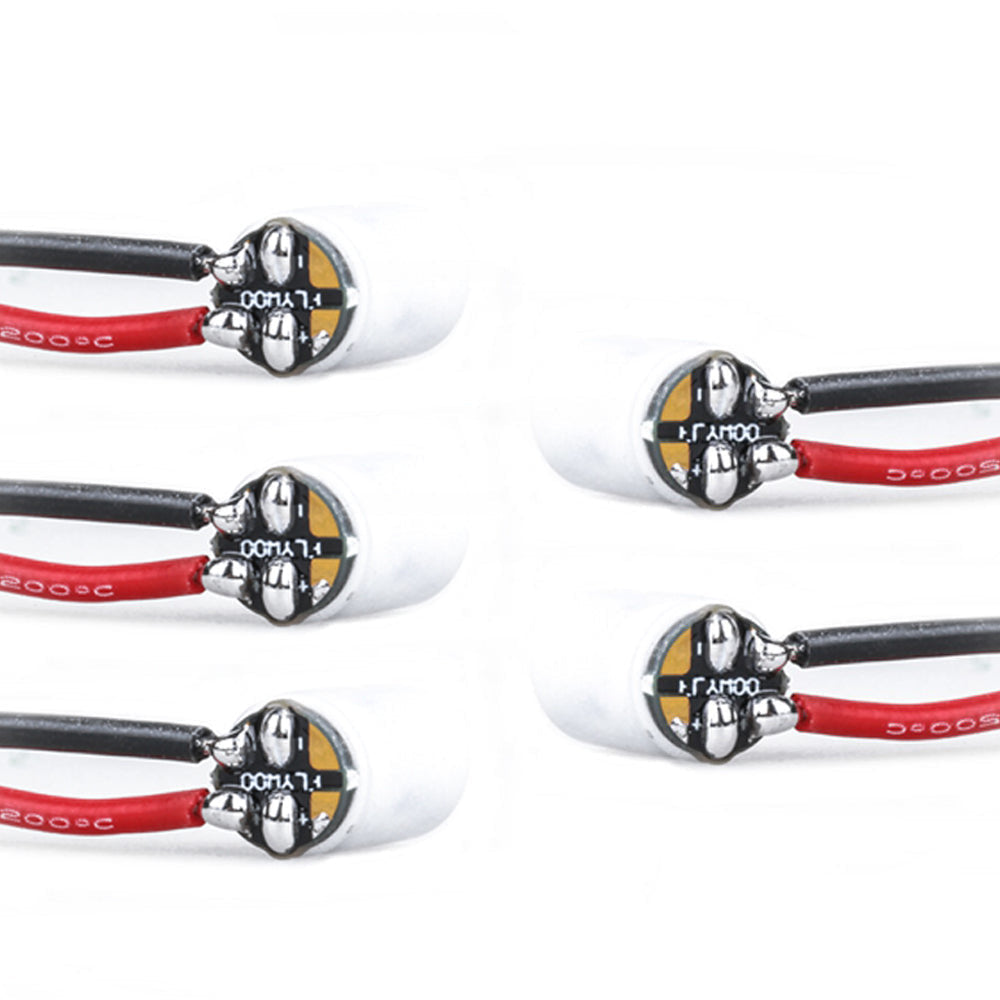

The integrated PCB makes installation significantly easier and more secure. It provides a dedicated mounting point for the capacitor leads, which helps prevent the wires from breaking off due to vibration or stress during flight.

Yes, these are perfectly suited for 6S builds. A 6S battery typically peaks around 25.2V, so a 50V rating provides a safe, comfortable buffer against voltage spikes that can occur during rapid motor deceleration.

These capacitors act as a buffer for your power system, filtering out electrical noise and voltage spikes. This helps protect your sensitive electronics, like your flight controller and video transmitter, from damage and can often clear up video interference.

Yes, these are polarized electrolytic capacitors. You must observe the correct polarity when soldering them to your ESC or power distribution board; the negative lead is clearly marked, and connecting them backward can cause the capacitor to fail or explode.

At 10mm x 12mm, they are quite compact, but they are generally intended for standard 3-inch to 7-inch builds. If you are working on a sub-2-inch micro drone, you should double-check your available space before purchasing, as they may be too bulky for extremely tight frames.
