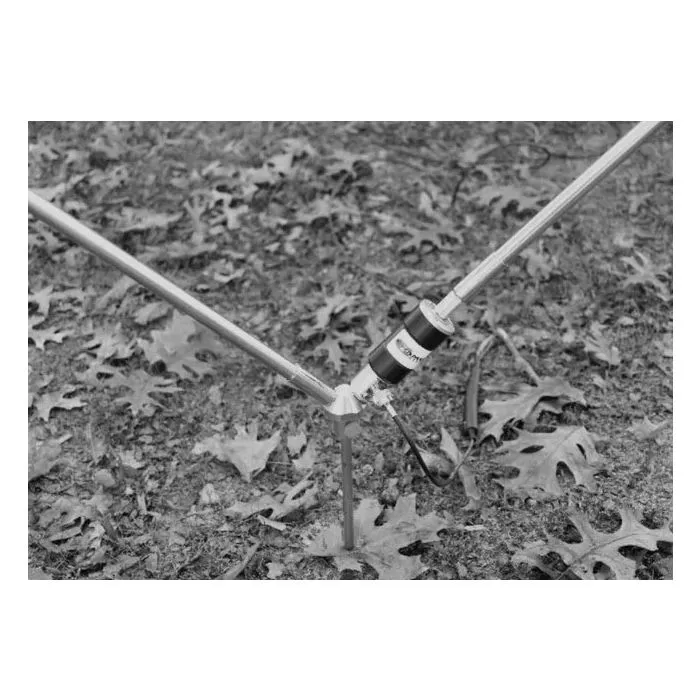

Chameleon Antenna Tactical Delta Loop Antenna Base Unit

Yes, its compact footprint and stealthy profile make it well-suited for restricted spaces. Because it can be configured as a low-profile loop or vertical, you can often blend it into your surroundings more easily than a traditional wire dipole.

The system is designed for rapid deployment, and you can expect a setup time of about five minutes. The collapsible components and included hub adapter are engineered to snap together quickly without requiring specialized tools.

While the CHA HYBRID-MINI UNUN helps match the antenna to your radio, you will likely need an antenna tuner to achieve a low SWR across the entire 3.5 to 54.0 MHz range. This is standard practice for multi-band antennas of this type.

The horizontal loop configuration is generally better for NVIS (Near Vertical Incidence Skywave) and shorter-range communication, while the vertical configuration is more effective for DX and long-distance contacts. Having both options allows you to adapt your signal pattern based on your specific operating goals.

No, this unit is rated for 500W SSB, 100W CW, and 50W Digital modes. It is designed primarily for portable and tactical operations rather than high-power base station use.

Yes, the antenna utilizes a standard 3/8-24 thread for its mounting configuration. This makes it compatible with a wide variety of common mobile mounts, tripod adapters, and existing antenna hardware.
