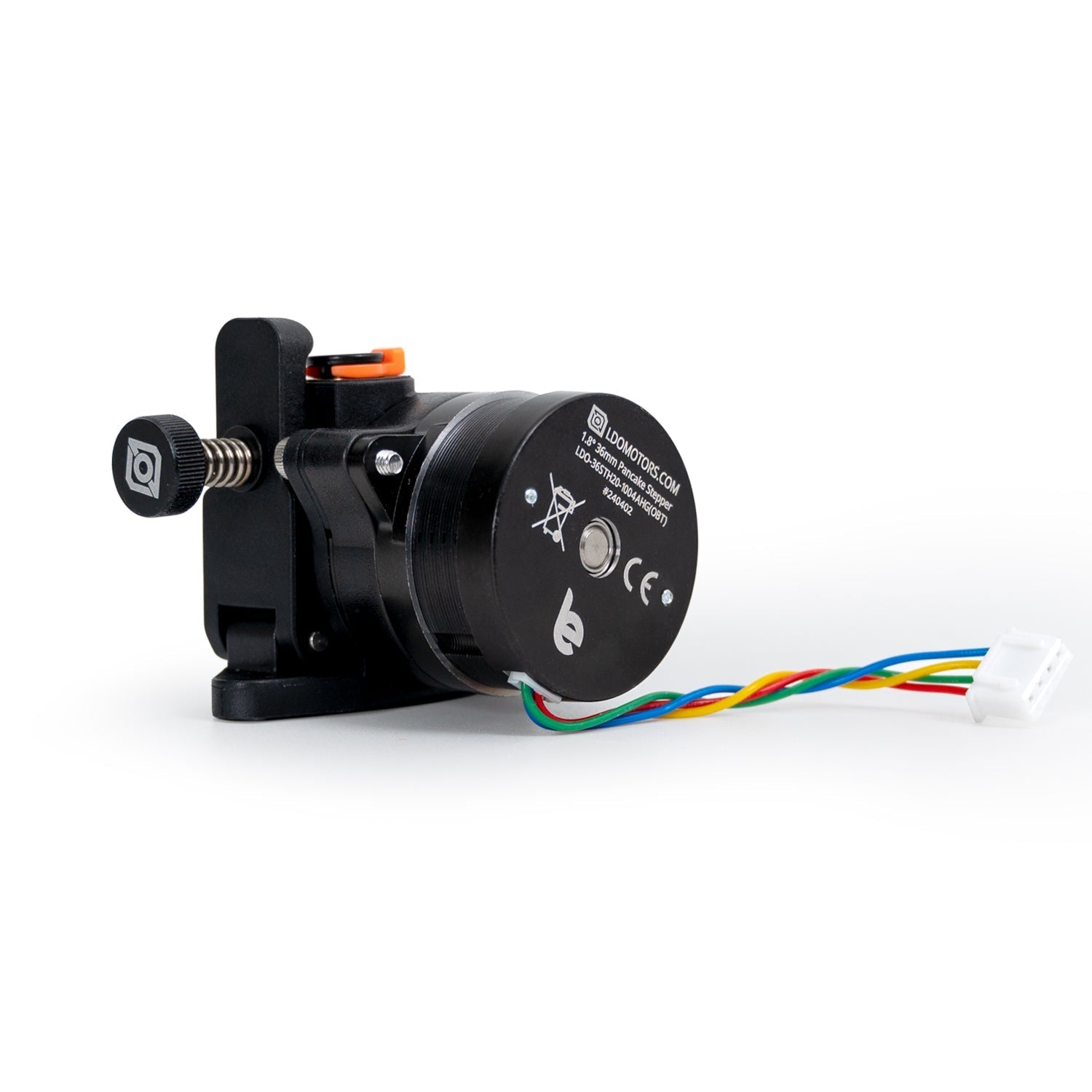

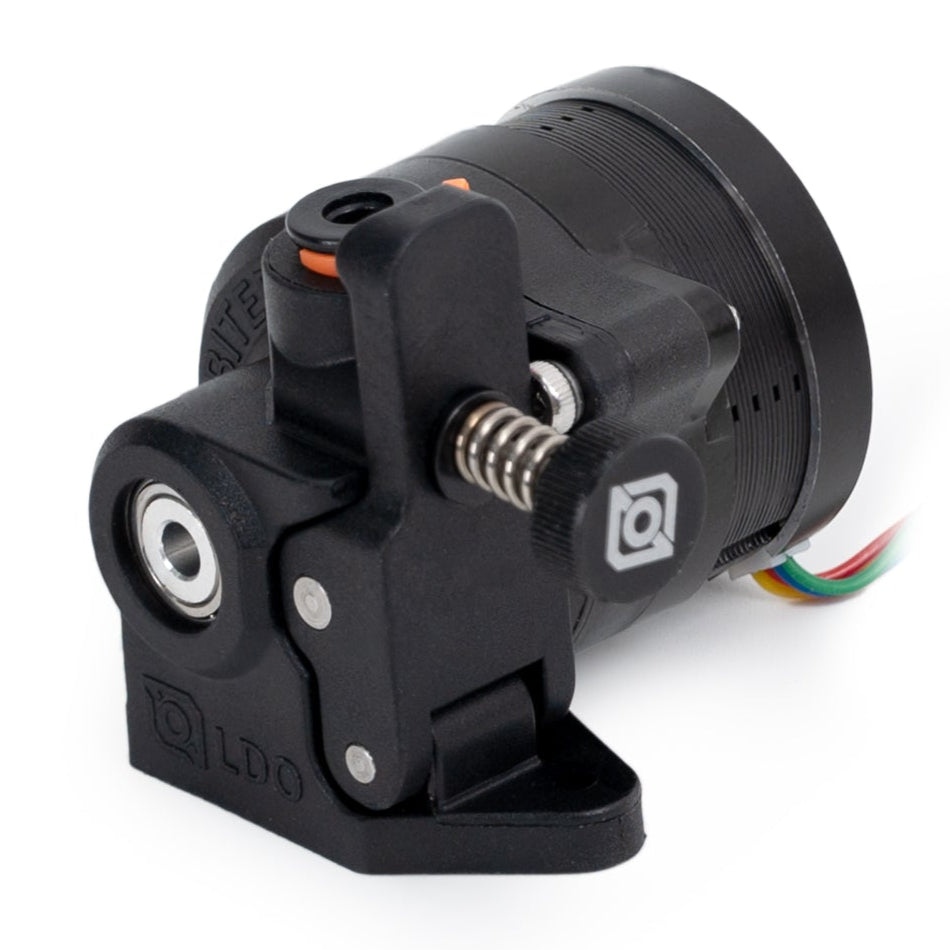

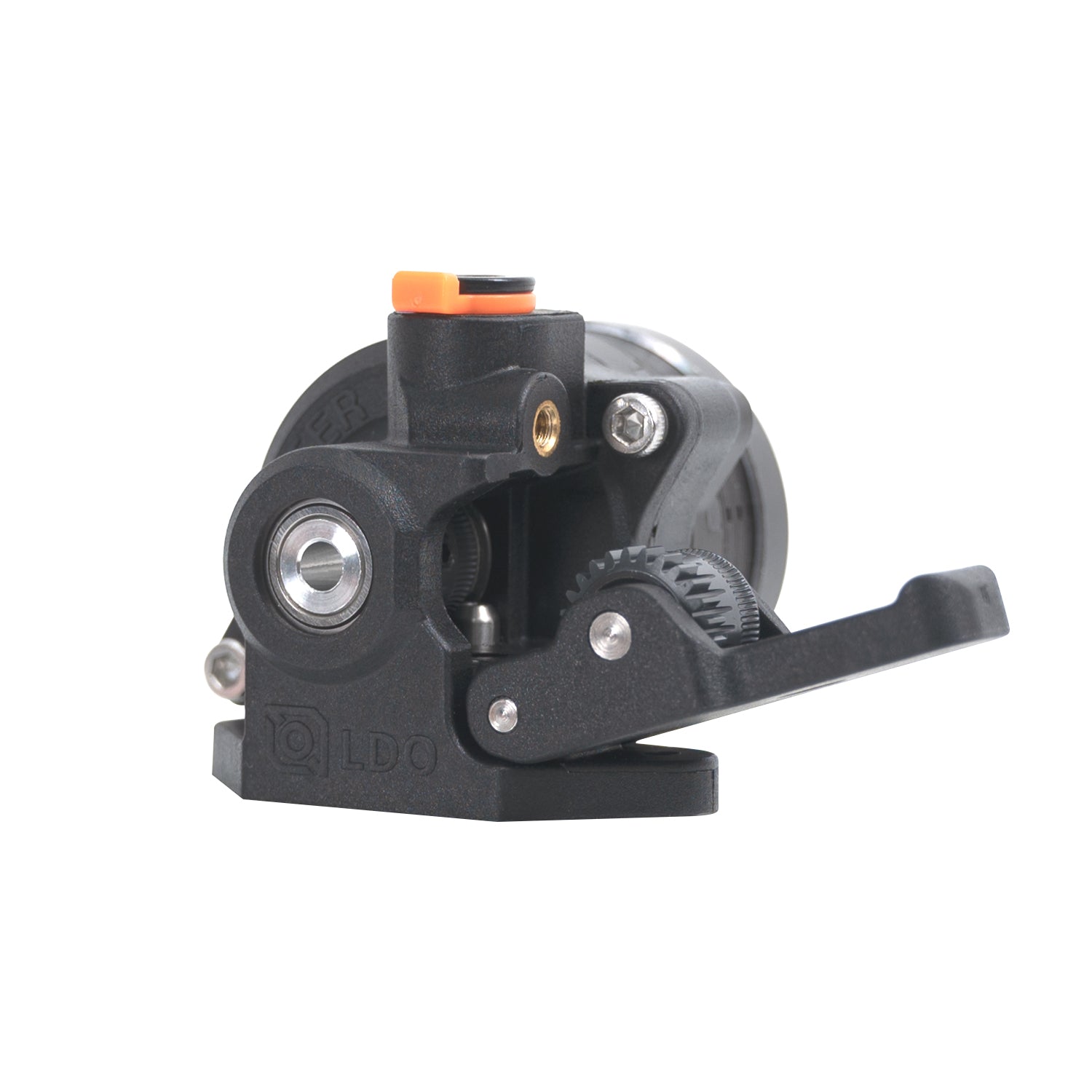

LDO Motors Orbiter Extruder V2.5

The V2.5 features a specialized spider shaft with a knurled surface that significantly reduces eccentricity to 20-30 µm. This precision, combined with its wide-cut gear design, ensures a more consistent extrusion rate compared to traditional extruders.

Yes, it is built for durability. The housing is constructed from high-temperature resistant GPA12, and the gears feature an RNC nano-coating, which provides superior hardness (HRC60+) to withstand the heat and friction of demanding print jobs.

At just 135g, this extruder reduces the mass on your print head assembly. This lower weight allows for faster acceleration and reduced ringing or ghosting in your prints, leading to cleaner surface finishes.

The Orbiter V2.5 is designed as a direct drive upgrade, but it is not a universal drop-in part for every machine. You will need to ensure your printer's mounting system can accommodate its specific footprint and that you are comfortable adjusting your firmware settings, such as E-steps, to match the extruder's gear ratio.

The RNC nano-coating significantly increases the surface hardness and wear resistance of the drive gears. This means the teeth maintain their grip and shape over a much longer lifespan, preventing the extrusion inconsistencies that occur as standard gears wear down.
