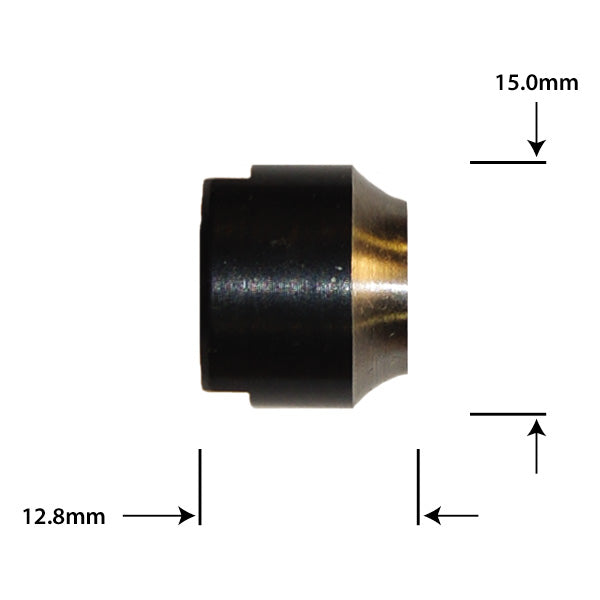

Wheels Mfg CN-R088 Front Cone

This cone is designed specifically for Taiwan-style front hubs, including JoyTech, Sovos, KK, and KT models. Before purchasing, verify your current axle diameter is 9.5 mm and the thread pitch is 26 tpi to ensure a proper fit.

You will need a 13 mm cone wrench to install or adjust this part. It is also recommended to have a standard adjustable wrench or a second cone wrench on hand to secure the locknut against the cone during assembly.

While this cone is machined to standard specifications for Taiwan-made front hubs, it is not a universal part. If your hub is not JoyTech, Sovos, KK, or KT, you should verify that your axle diameter and thread pitch match the 9.5 mm x 26 tpi specifications exactly before attempting installation.

Cones are wear items that develop pitting or grooves over time due to friction and debris. Replacing a worn cone is necessary if you feel grinding or roughness in your wheel rotation, or if you notice play in the hub that cannot be adjusted out.

No, this product is the cone only. You will need to reuse your existing locknut and hardware, or source replacements separately if those components are also damaged.
