Shimano CUES FD-U6030-X

The FD-U6030-X is specifically designed for 9-speed and 10-speed Shimano CUES drivetrains. It is not compatible with older Shimano road or mountain bike groupsets, so ensure your entire system is part of the CUES ecosystem before purchasing.

Yes, it comes with a 34.9mm band clamp and includes adapters to fit 31.8mm and 28.6mm seat tubes. This makes it compatible with most standard frame sizes found on gravel and road bikes.

This unit supports a maximum chainring size of 50 teeth. It also has a total capacity of 16 teeth, meaning the difference between your smallest and largest chainring should not exceed that amount.

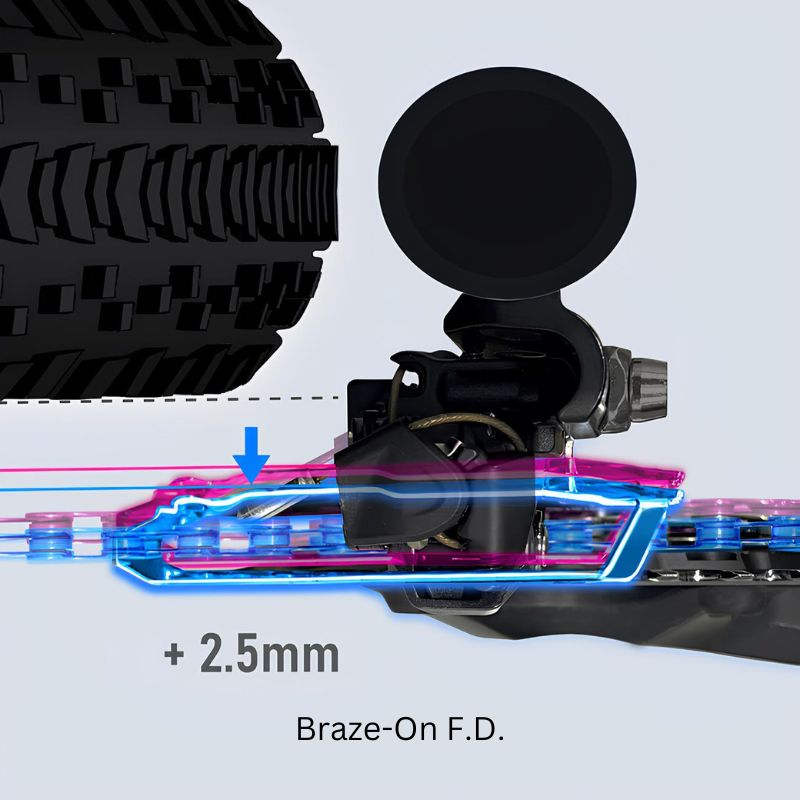

The wider 47mm chainline is designed to accommodate modern gravel and road bikes that use wider tires. This extra clearance prevents the chain from rubbing against the tire or the derailleur cage when you are running wider rubber.

The toggle-link design changes the leverage ratio of the derailleur, which significantly reduces the physical effort required at the shifter. You will notice a lighter, smoother action, especially when shifting under load.

Yes, this model is strictly for bottom-pull cable routing. Check your bike frame to ensure the cable comes up from underneath the bottom bracket area, as it will not work with top-pull routing systems.
