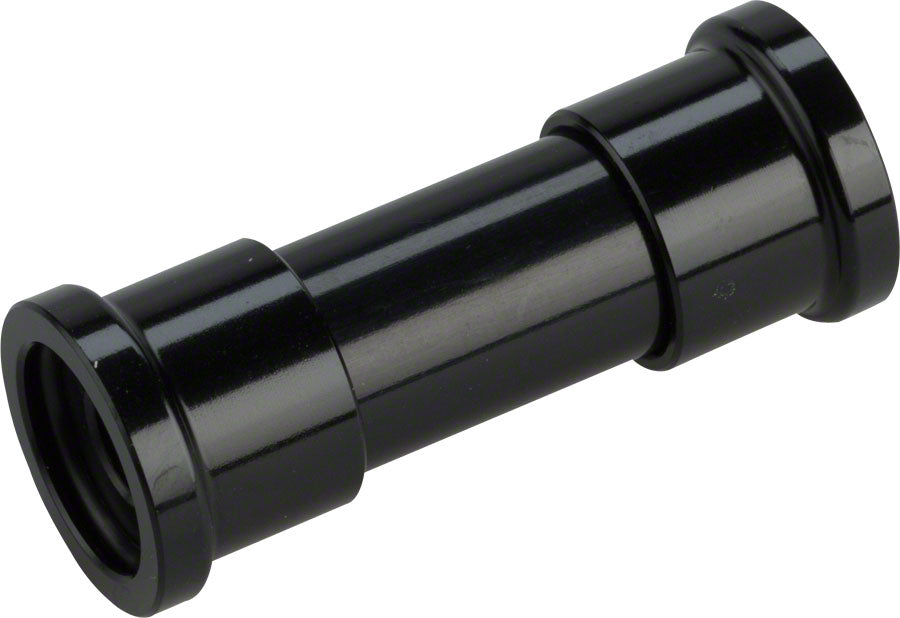

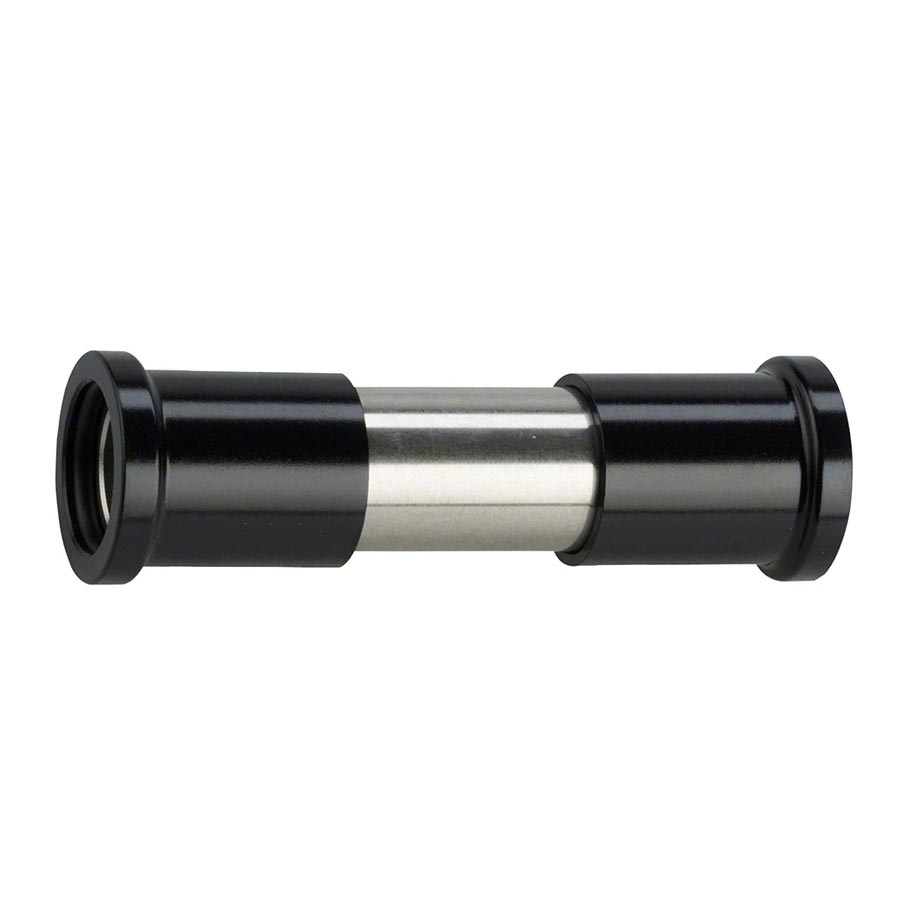

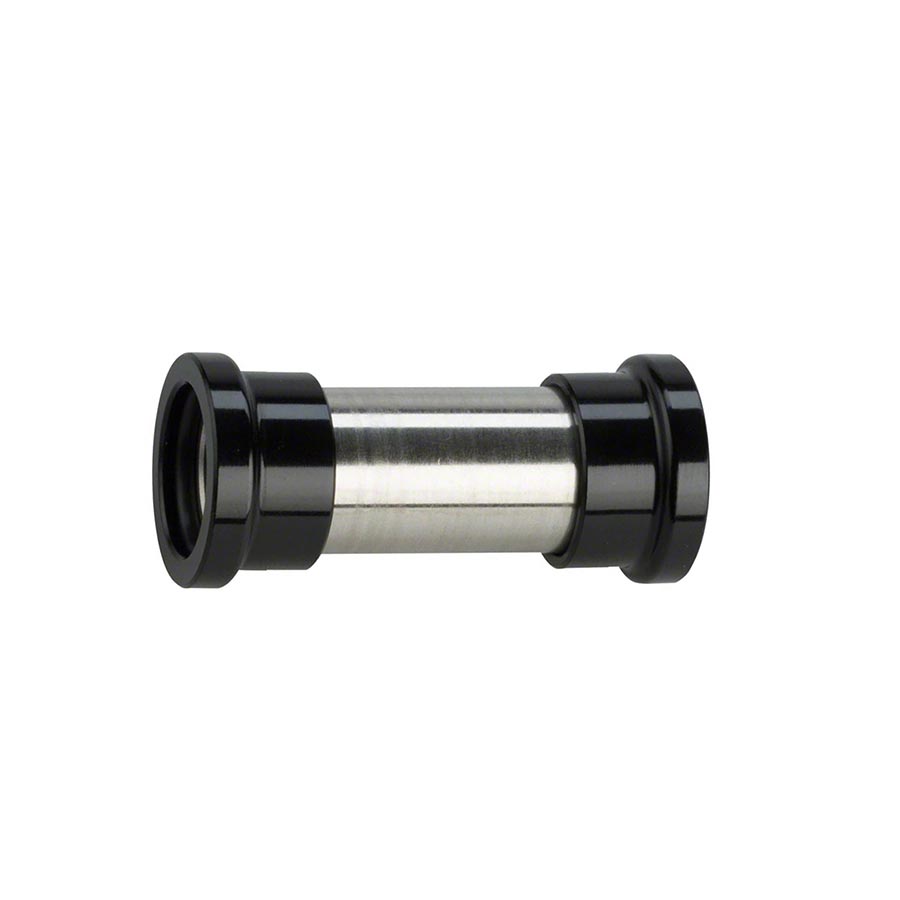

RockShox Rear Shock Mounting Hardware

You need to measure two specific dimensions on your frame: the bolt mount diameter and the frame mount width. This specific kit is designed for a 10mm bolt diameter and a 50mm frame mount width, so ensure your frame matches these exact specs before purchasing.

It is compatible with most RockShox rear shocks, but it specifically excludes the BAR model. Always verify your shock model and the required eyelet size, as this kit is engineered for standard half-inch shock eyelets.

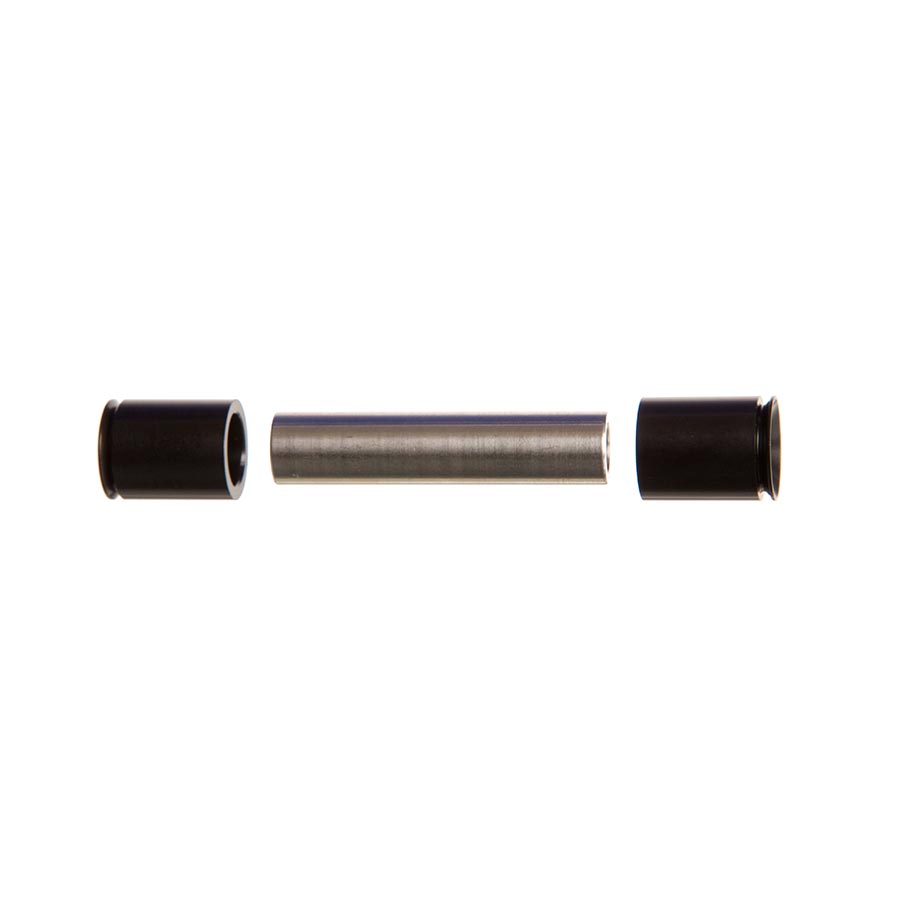

The three-piece design allows for more precise adjustments and a tighter, play-free connection between the shock and the frame. This configuration helps distribute forces more evenly, which reduces wear on your mounting points over time.

The offset design is intended to accommodate specific frame geometries where the shock eyelet might not be perfectly centered. It ensures the shock sits correctly within the frame mounts to prevent binding or clearance issues during suspension compression.

While you don't need proprietary tools, a shock mounting tool or a sturdy bench vise is highly recommended to press the bushings into the shock eyelet without damaging them. Using a hammer or improper tools can easily deform the hardware.
