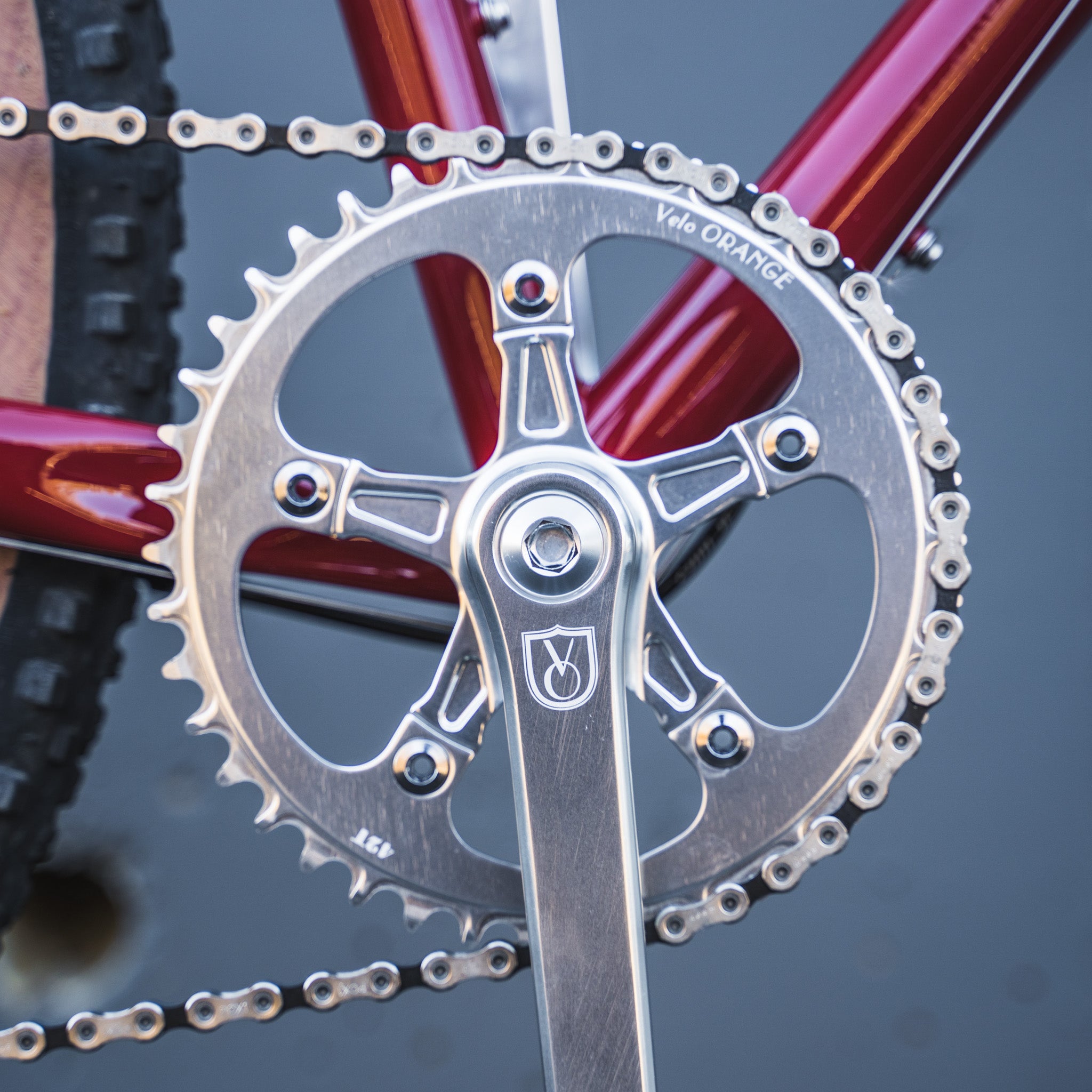

Single Ring Crankset

This crankset uses a standard JIS square taper bottom bracket interface. You will need to select a bottom bracket with the appropriate spindle length to achieve the specified 42mm chainline.

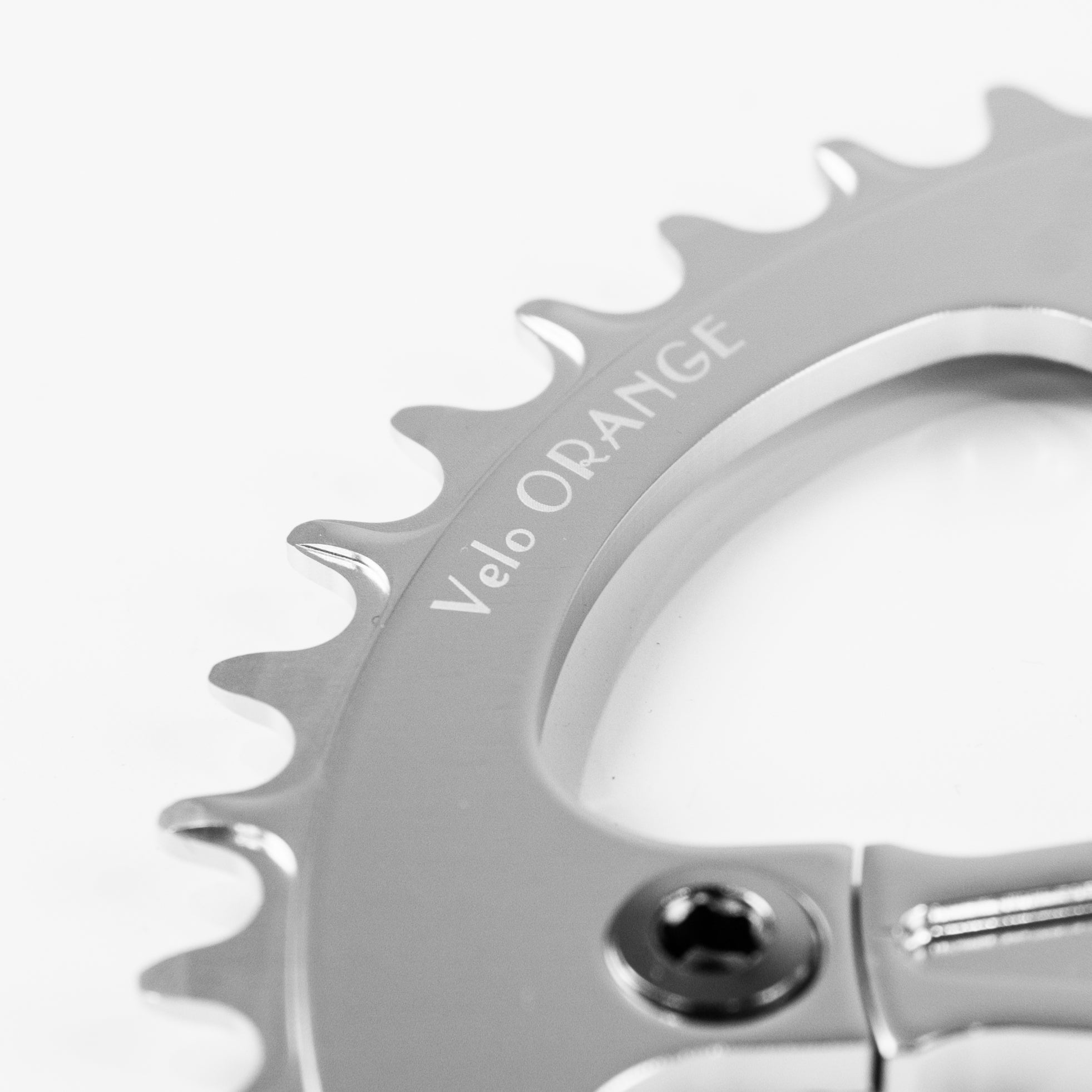

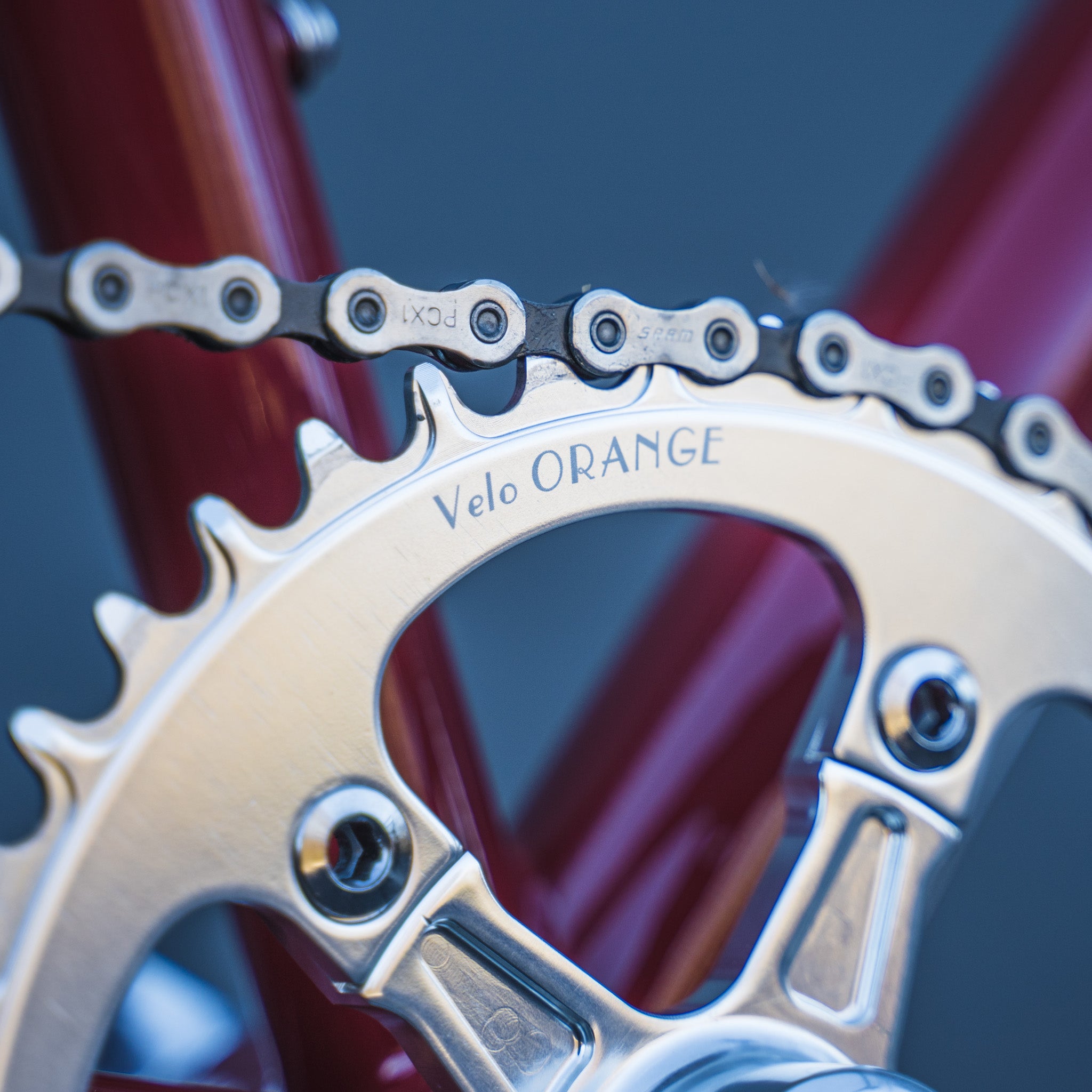

Yes, the narrow-wide tooth profile is specifically designed to lock the chain in place. It provides excellent retention, making it ideal for 1x drivetrains where you don't have a front derailleur to guide the chain.

No, this crankset is designed exclusively for 1x drivetrains. It is optimized for single-speed, fixed-gear, or internal hub setups and will not work with a multi-speed derailleur system.

The Q-factor is 134mm, which measures the distance between the crank arms where the pedals attach. A lower Q-factor like this generally offers a more natural, efficient pedaling stance, though you should ensure it provides enough clearance for your specific frame's chainstays.

Yes, the chainring uses a standard 110mm BCD (Bolt Circle Diameter) mount. This makes it easy to replace or swap the ring if you decide to change your gearing down the road.

The crankset includes self-extracting dust caps, which simplifies the removal process significantly. You will still need a standard crank puller tool to remove the arms from the bottom bracket spindle.
