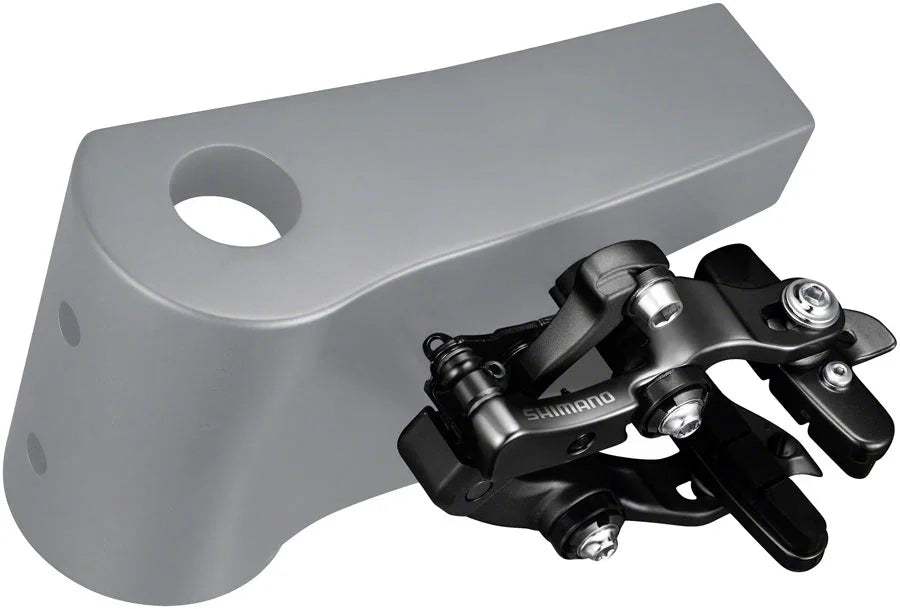

Shimano Ultegra BR-R8110-R Caliper Brake

This is a direct-mount brake, meaning your frame must have specific mounting studs integrated into the seat stays or chainstays. It will not fit frames designed for traditional single-bolt center-mount calipers.

The official clearance is 28mm. While some riders may squeeze in slightly wider tires depending on their rim width and tire profile, 28mm is the maximum recommended width to ensure safe clearance and prevent rubbing.

This caliper uses a short-pull actuation system. It is designed to work with standard Shimano road brake levers, including mechanical rim brake STI shifters. It is not compatible with long-pull levers meant for mountain bikes or linear-pull brakes.

The direct-mount design bolts the caliper directly to the frame at two points rather than one. This increases structural rigidity, which results in a more responsive, firmer lever feel and slightly better power modulation during hard braking.

Yes, the caliper includes Shimano cartridge brake pads. These are replaceable, so you can swap out the rubber inserts once they wear down without needing to replace the entire pad assembly.
