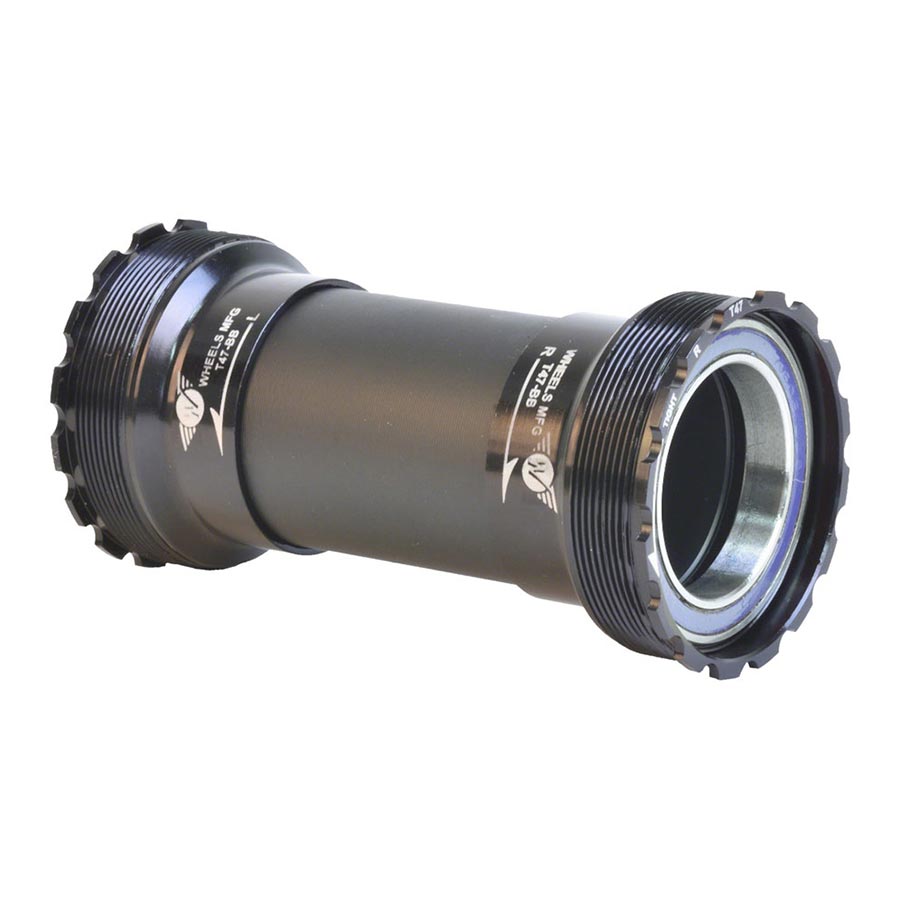

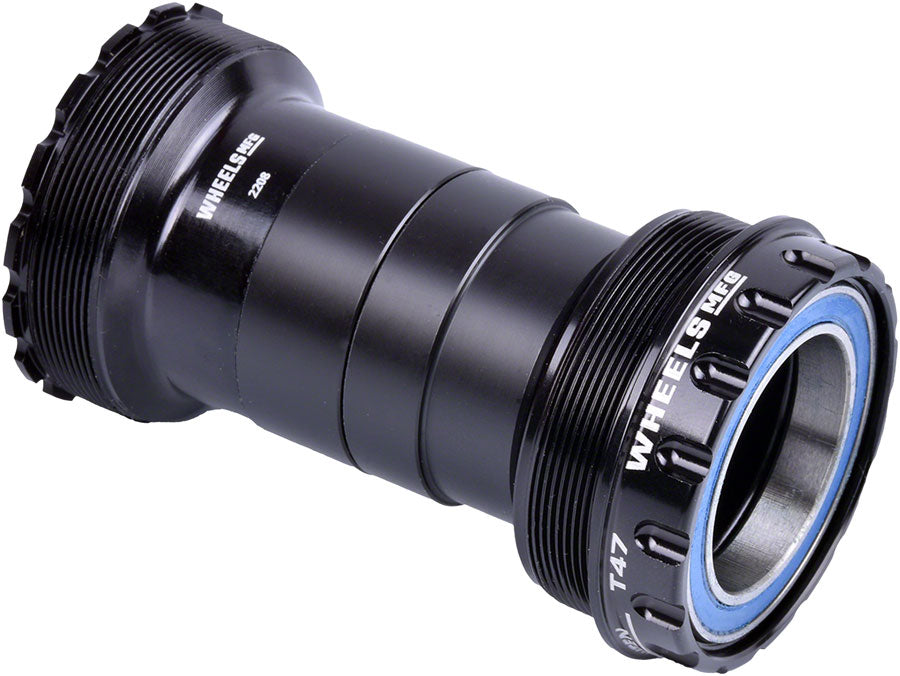

Wheels Manufacturing T47A BB

The 'A' denotes that this bottom bracket is specifically designed for asymmetrical threaded frames. It is engineered to fit shell widths between 77.5mm and 79mm, which is distinct from standard T47 shells.

No, this specific model is designed exclusively for 30mm spindle cranks. You will need a different bottom bracket configuration if you are running a 24mm spindle.

Yes, the bearings are fully serviceable. This allows you to replace them when they eventually wear out, extending the overall lifespan of the bottom bracket cups.

You will need a bottom bracket tool with a 48.5mm x 16-notch pattern. This is a standard size for many external bearing bottom brackets, but it is worth double-checking your current toolset before starting.

The sleeve serves two purposes: it acts as a barrier against dirt and grime to protect the bearings, and it prevents internal cables from rubbing against the rotating crank spindle.

Yes, the threaded design is significantly more effective at preventing creaks than press-fit alternatives. By threading the cups directly into the frame, you create a more secure and stable interface.
