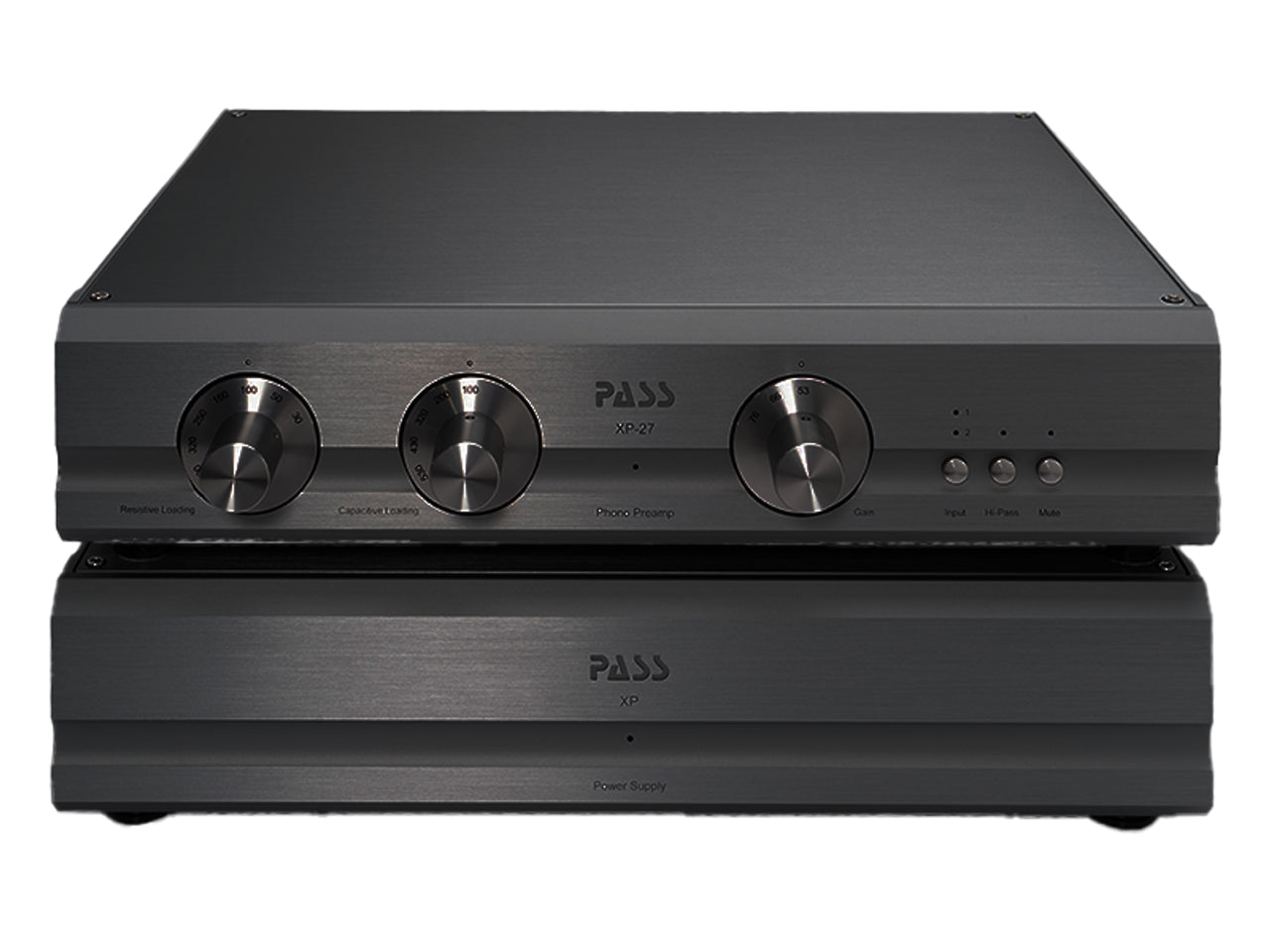

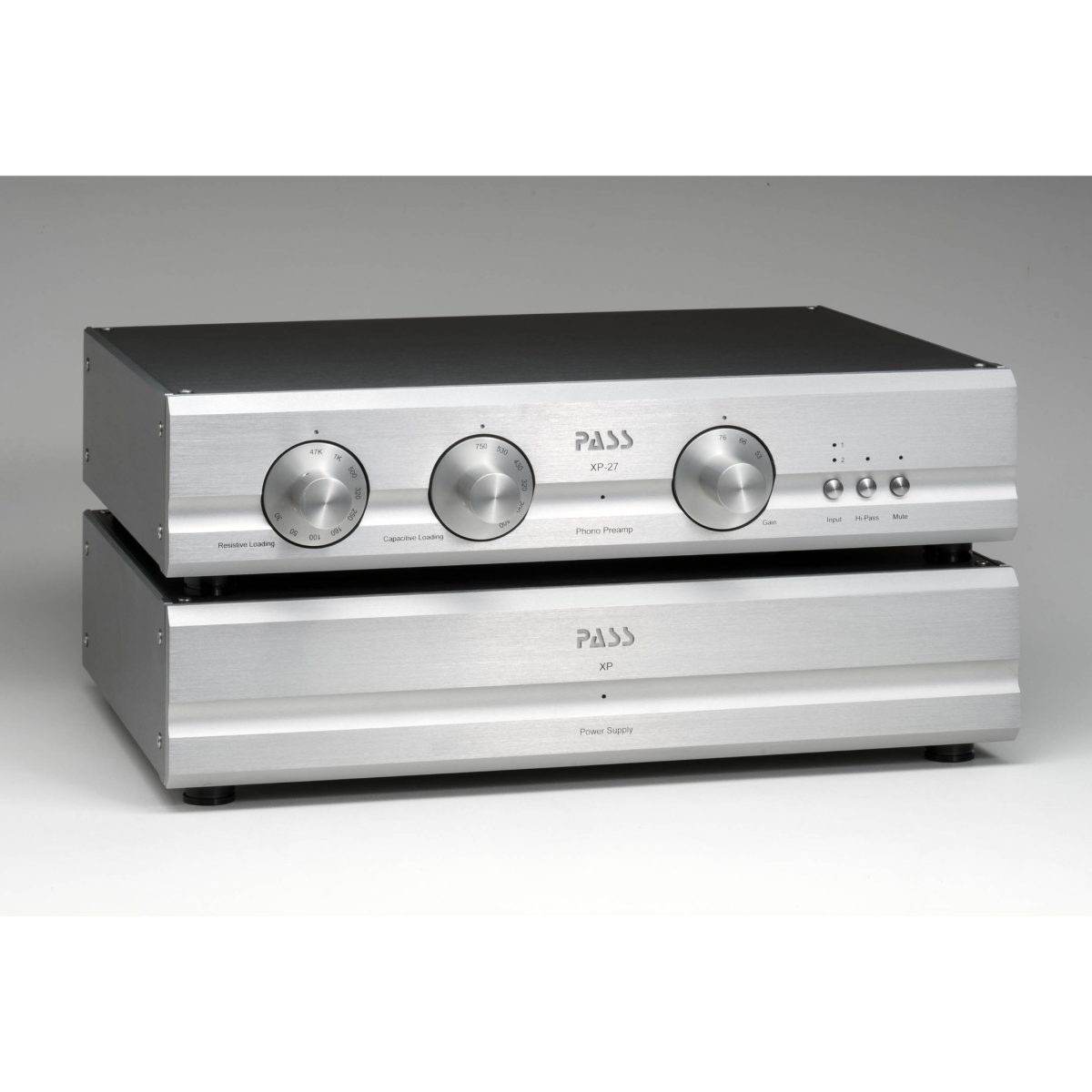

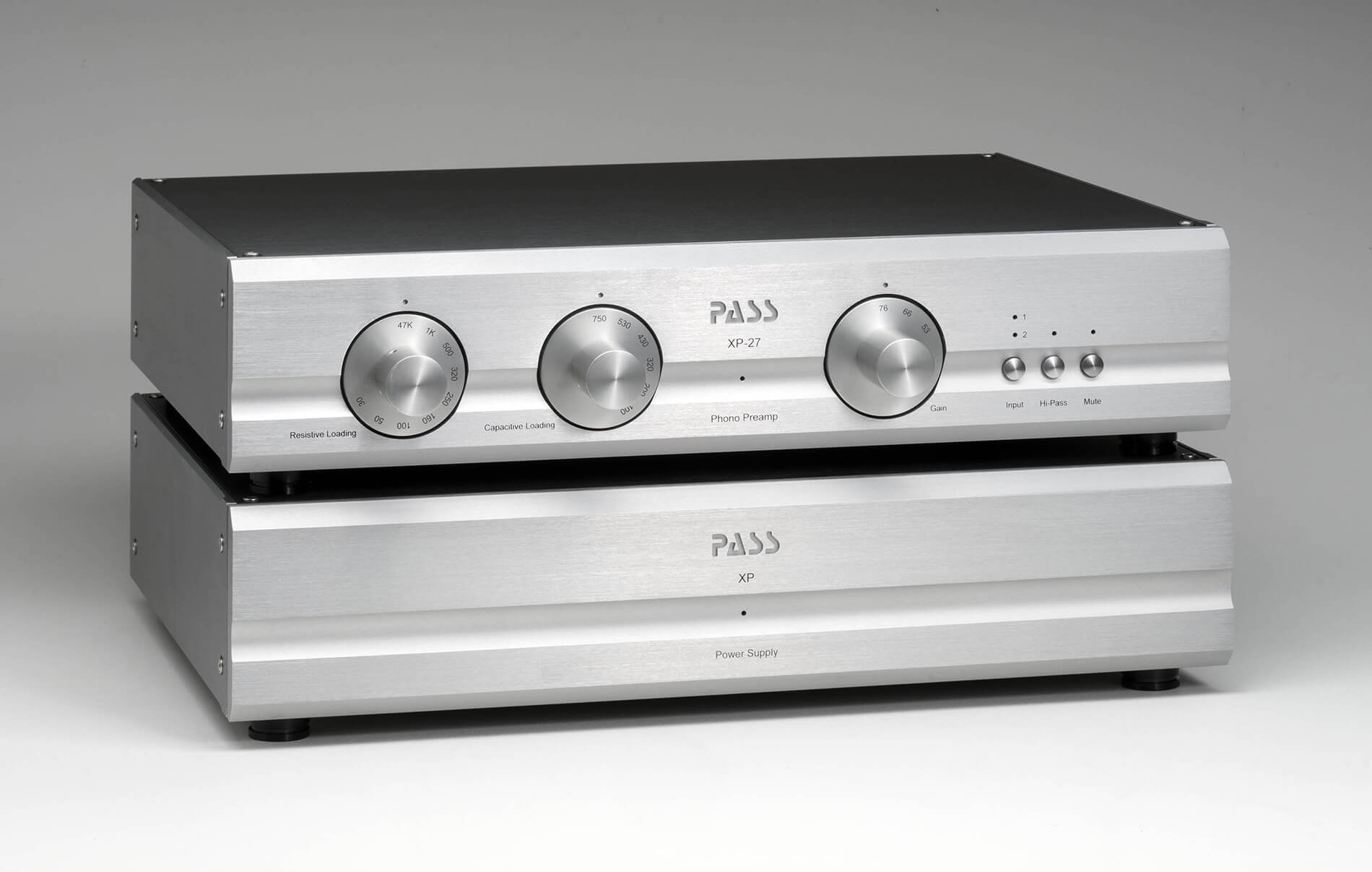

Pass Labs XP-27 Phono Preamp

The dual-chassis design separates the sensitive audio circuitry from the power supply. By housing the power supply in its own chassis with shielded toroidal transformers, Pass Labs effectively isolates the audio signal from electromagnetic interference, resulting in a lower noise floor and greater sonic clarity.

Yes, the XP-27 is highly versatile and compatible with both Moving Magnet (MM) and Moving Coil (MC) cartridges. It offers three selectable gain settings—53 dB, 66 dB, and 76 dB—to accommodate the varying output levels of different cartridge types.

The XP-27 allows for precise adjustments to both input impedance and capacitive loading. You can tailor the input impedance from 30 ohms up to 47 kohms and adjust capacitive loading between 100 and 750 pF, ensuring your cartridge performs exactly as the manufacturer intended.

No, the XP-27 is designed as a pure, high-performance phono stage without additional features like subsonic filters, headphone outputs, or analog-to-digital converters. This minimalist approach ensures that the signal path remains as clean and uncolored as possible.

The unit provides both RCA and XLR balanced outputs. This flexibility allows you to integrate the preamp into a wide variety of high-end audio systems, whether you prefer single-ended or balanced connections.

The XP-27 features significant improvements in RIAA accuracy and distortion reduction compared to its predecessors. By utilizing input and gain circuitry derived from the flagship Xs Phono design, it handles switching and loading at higher signal levels, which results in a more spacious and emotionally direct sound.
