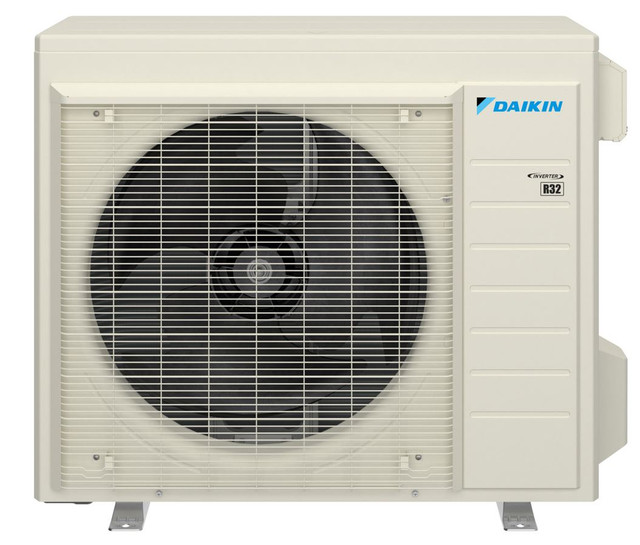

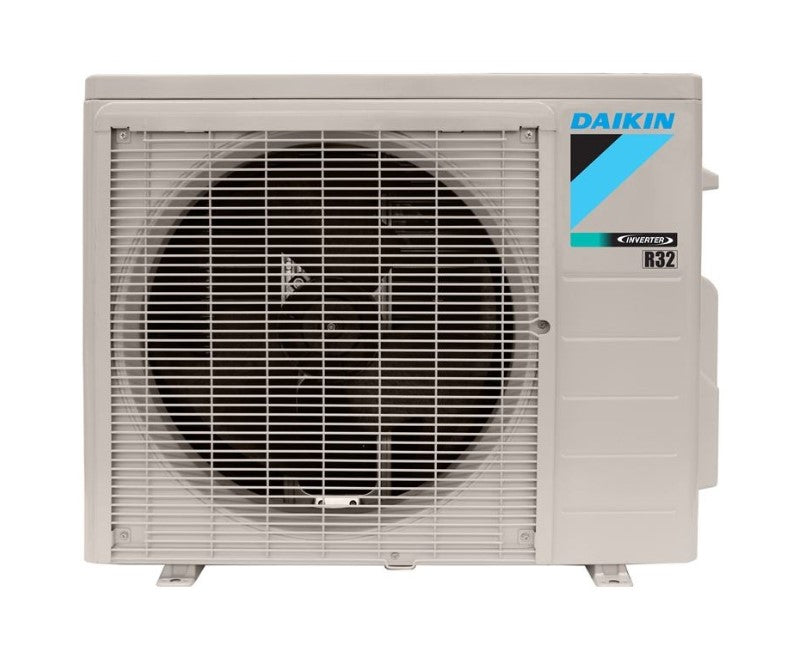

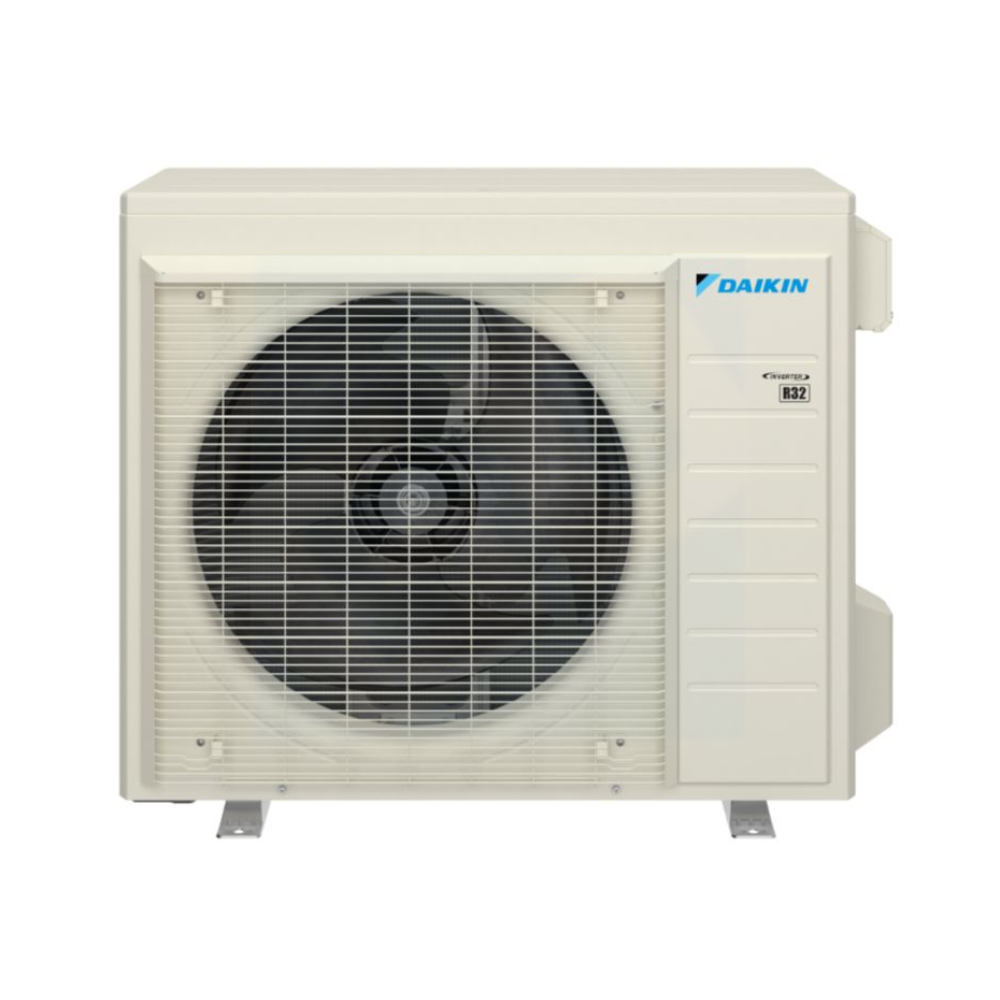

Daikin Oterra Series Heat Pump Outdoor Unit

The Oterra series is designed for moderate climates, with a minimum outdoor operating temperature for heating of 5°F. If you live in an area where temperatures frequently drop below this, you may need a specialized hyper-heat model.

Yes, this is a single-zone outdoor unit designed specifically for Daikin duct-free mini-split indoor heads. It cannot be used with traditional ducted systems or multi-zone indoor configurations.

This unit operates at 49 dBA, which is relatively quiet for an outdoor condenser. It is designed to be unobtrusive, making it a good choice for installations near patios or bedroom windows.

This unit requires a 208-230V power supply and should be connected to a dedicated 15-amp circuit breaker. Because it involves high-voltage electrical work, professional installation by a licensed HVAC technician is required.

The maximum piping length is 65.625 feet, with a maximum height difference of 49.25 feet between the indoor and outdoor units. You will need to ensure your installation site falls within these specifications to maintain system efficiency.

R-32 is a more environmentally friendly refrigerant compared to older alternatives, offering a lower global warming potential. It also improves the system's overall energy efficiency, helping to reduce your operating costs.
