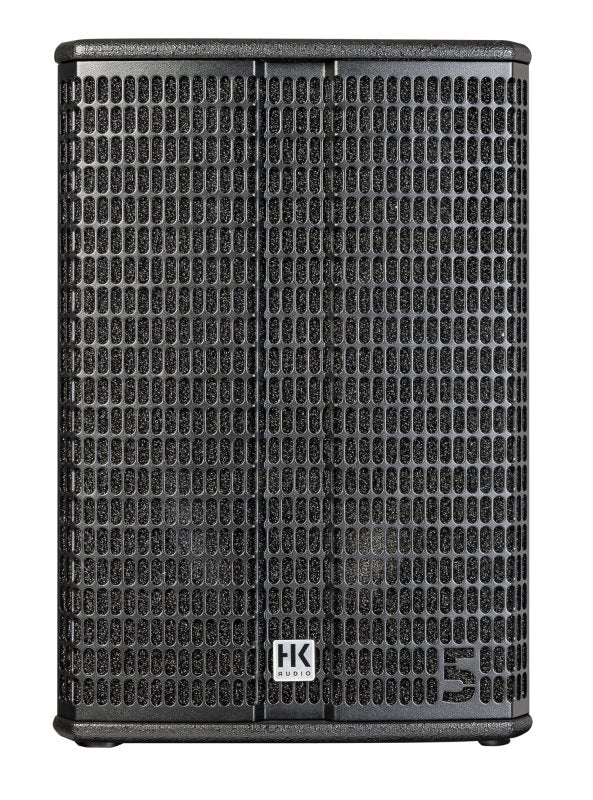

HK Audio Linear 5 MKII

Yes, you can use the switchable EQ presets on the back panel for quick adjustments like Flat, Boost, or Low Cut. For more precise control, such as the 10-band parametric EQ or delay settings, you will need to connect via Ethernet to access the internal DSP software.

The speaker features a rotatable horn with a 60° x 40° dispersion angle. You can physically rotate the horn to optimize the sound coverage depending on whether the speaker is mounted vertically or horizontally.

The DuoTilt flange offers two different tilt angles—3° or 7°—allowing you to aim the sound directly at your audience rather than over their heads. This is particularly useful when the speaker is mounted on a standard tripod stand.

Yes, the cabinet is equipped with three M8 flying points, making it suitable for suspended installations. Its robust birch plywood and MDF construction is designed to handle the rigors of both touring and permanent mounting.

The FIR crossover with a 72 dB/oct slope ensures a very precise separation between the low and high frequencies. This results in clearer sound reproduction and better phase alignment, which helps maintain audio quality even at high volumes.

The speaker features an Ethernet port for remote control via the HK Audio DSP control software. You can daisy-chain multiple units together using the network ports to manage an entire system from a single laptop.
