Phanteks PH-F120T30 Case Fan

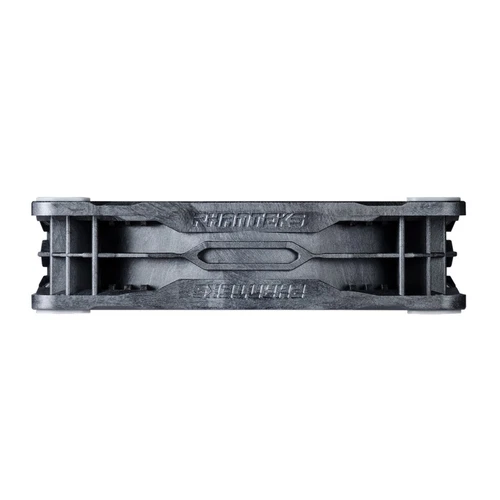

Most standard case fans are 25mm thick, so the extra 5mm on the Phanteks T30 may cause clearance issues in tight spaces, such as near motherboard heatsinks or RAM modules. We recommend checking your case or radiator clearance to ensure you have enough room for the slightly deeper frame.

The fan features a built-in toggle switch on the frame that allows you to select between three distinct modes: Hybrid, Performance, and Advanced. These modes cap the maximum RPM at different levels, letting you prioritize either silent operation or maximum cooling power without needing software.

Because of its high static pressure capabilities, this fan is an excellent choice for radiators and thick air coolers. While it works well as a case fan, its design is specifically optimized to push air through restrictive components like dense radiator fins.

No, the fan uses a standard 4-pin PWM connector, meaning you can control its speed directly through your motherboard's BIOS or any standard fan control software. The physical switch on the fan frame sets the performance ceiling, and your motherboard handles the fine-tuning from there.

The glass fiber reinforced Liquid Crystal Polymer (LCP) is significantly more rigid than standard plastics. This rigidity allows for tighter manufacturing tolerances and minimal tip clearance between the blades and the frame, which reduces turbulence and improves overall airflow efficiency.

When set to the lower RPM profiles, the fan is very quiet and maintains excellent sound quality. However, at its maximum speed of 3000 RPM in Advanced Mode, it is quite audible; it is best to use the lower profiles for daily tasks and reserve the high-speed mode for heavy workloads.
