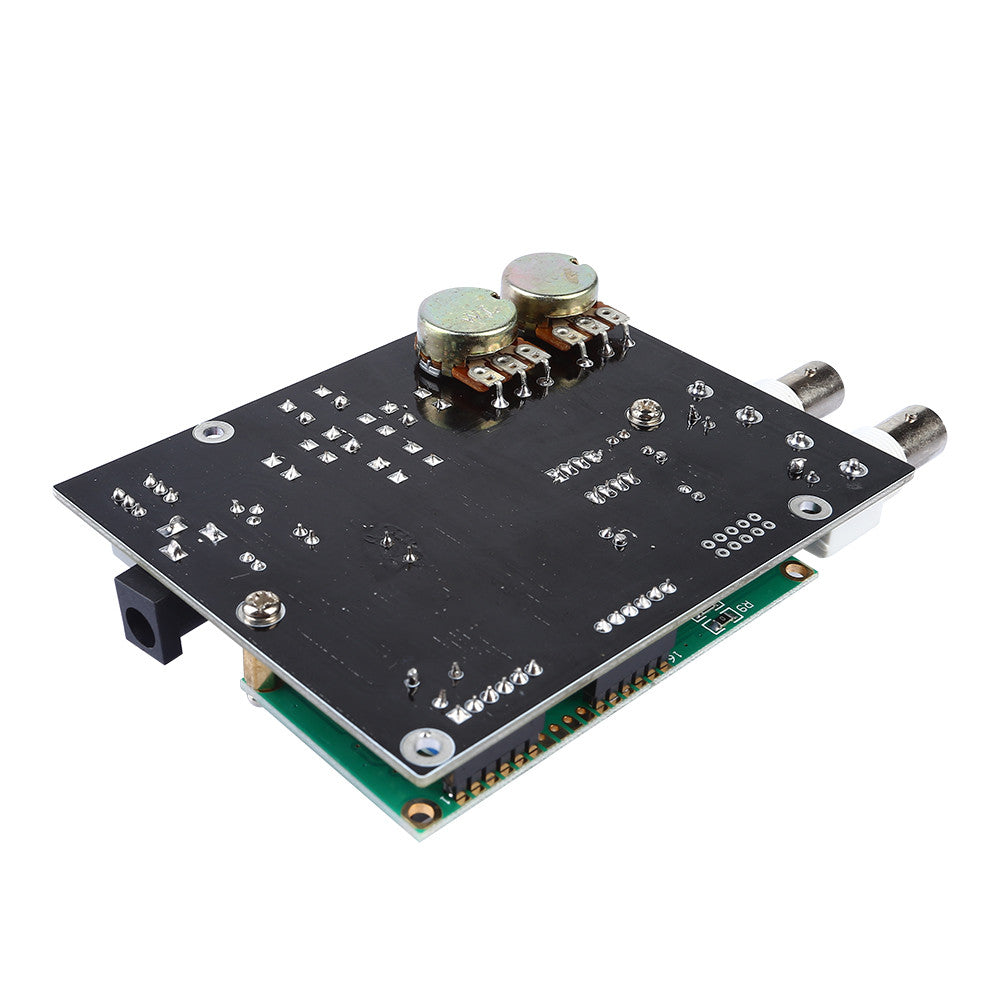

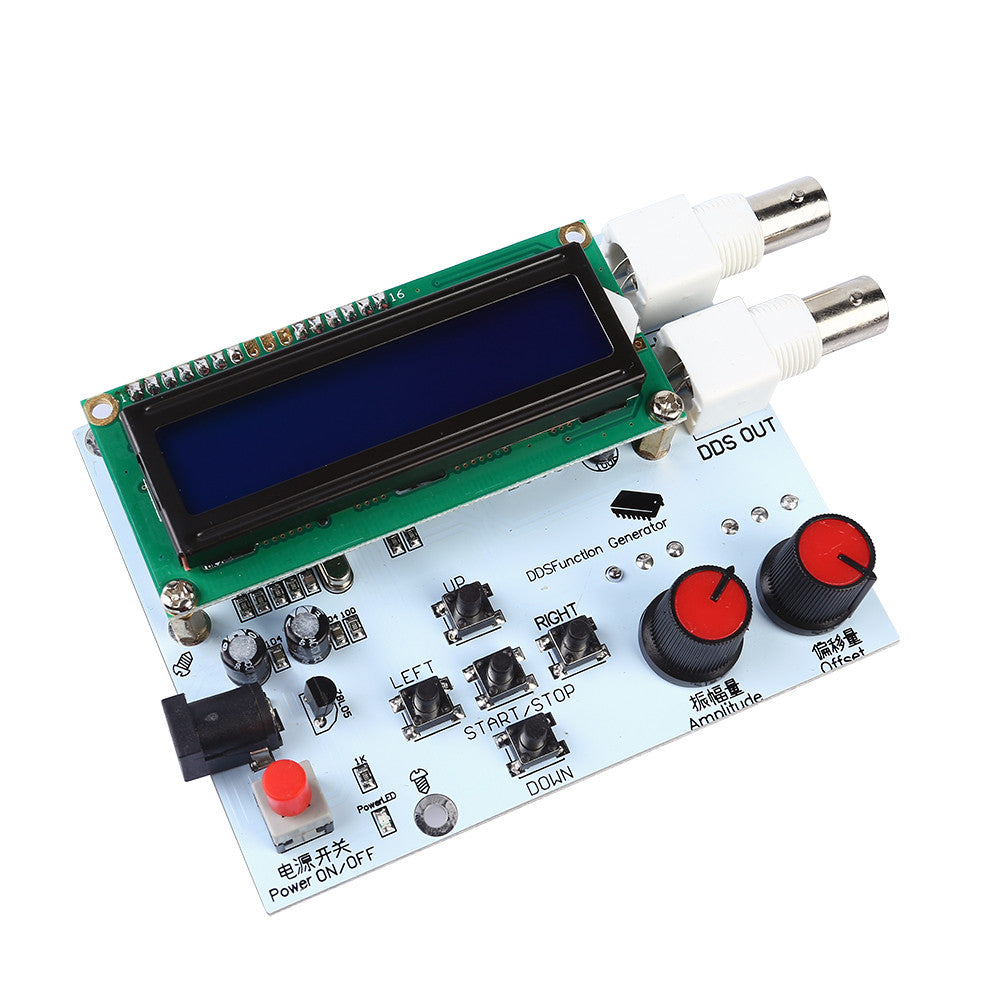

SainSmart DDS Function Signal Generator Module
Best signal generator for electronics hobbyists and DIY experimenters.
This DIY kit provides a versatile signal generation solution for circuit experiments and equipment testing. It offers a wide range of waveforms and adjustable parameters, making it a practical tool for hobbyists and electronics enthusiasts looking to build their own test equipment.
$23.99
Who it's for
- Students and hobbyists learning about electronic circuit assembly
- Budget-conscious makers needing basic signal generation tools
- Engineers building custom test benches or experimental setups
Who should skip it
- Beginners lacking confidence in soldering and assembly
- Professionals requiring high-precision, factory-calibrated signal output
- Users needing a durable, enclosed device for rugged environments
Performance breakdown
Frequency Versatility
Covers standard hobbyist ranges effectively, though limited for high-frequency RF work.
Interface Intuition
Five-key layout is straightforward, though menu navigation requires a brief learning curve.
Build Complexity
A rewarding DIY project that offers great insight into circuit assembly.
Signal Adjustability
Independent potentiometers provide decent control, but lack precise digital calibration.
Display Clarity
The 1602 LCD is functional and readable, albeit dated in appearance.
Configuration Retention
Automatic startup memory saves time by recalling your last used settings.
Key Specs
Operating voltage
DC 7V-9V
DDS frequency range
1Hz-65534Hz
High-speed (HS) Square wave frequencies
1MHz, 2MHz, 4MHz, 8MHz
Output signal amplitude offset
0.5Vpp-5Vpp
Output signal amplitude
0.5Vpp-14Vpp
Output Impedance
20-200 ohms
Size
100*80mm
Template thickness
2mm
