SainSmart Due Board with TFT LCD Module Display Shield

The primary upgrade is the 32-bit ARM Cortex-M3 processor, which runs at 84 MHz. This provides significantly more computing power, allowing you to handle complex tasks, faster data processing, and more memory-intensive projects that would overwhelm standard 8-bit microcontrollers.

No, this board operates strictly at 3.3V. It is crucial to ensure your sensors, modules, and peripherals are compatible with 3.3V logic levels, as connecting 5V components directly to the I/O pins can permanently damage the board.

The dedicated programming port provides a reliable way to upload firmware, even if the main microcontroller crashes or becomes unresponsive. It acts as a fail-safe, ensuring you can always recover the board without needing complex reset procedures.

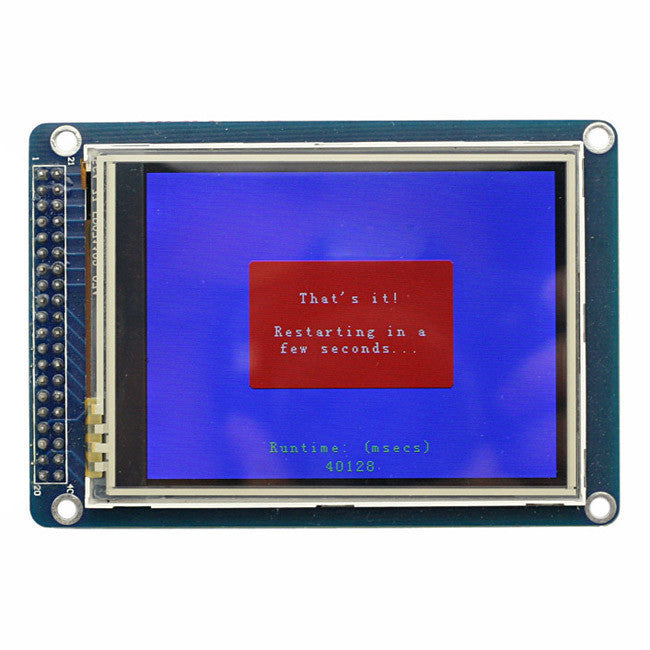

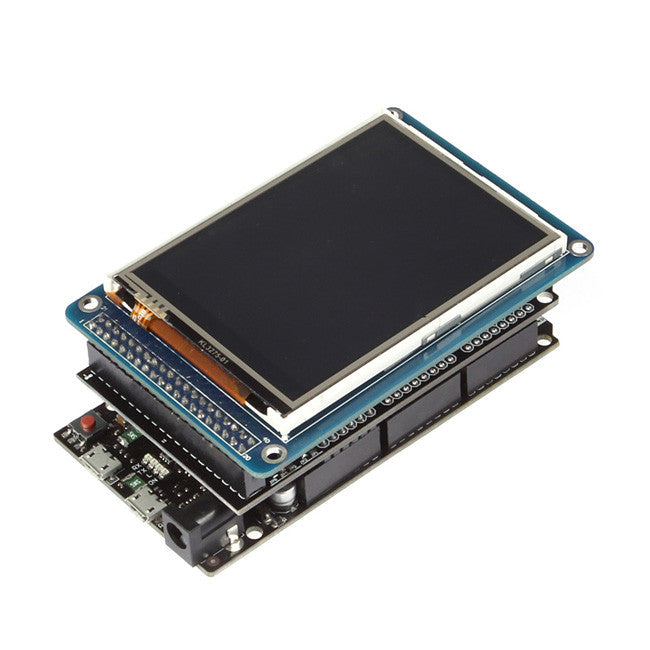

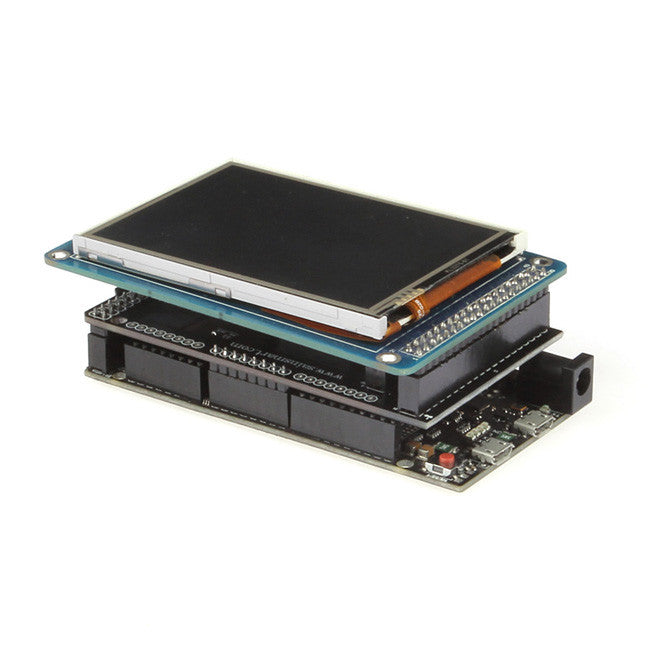

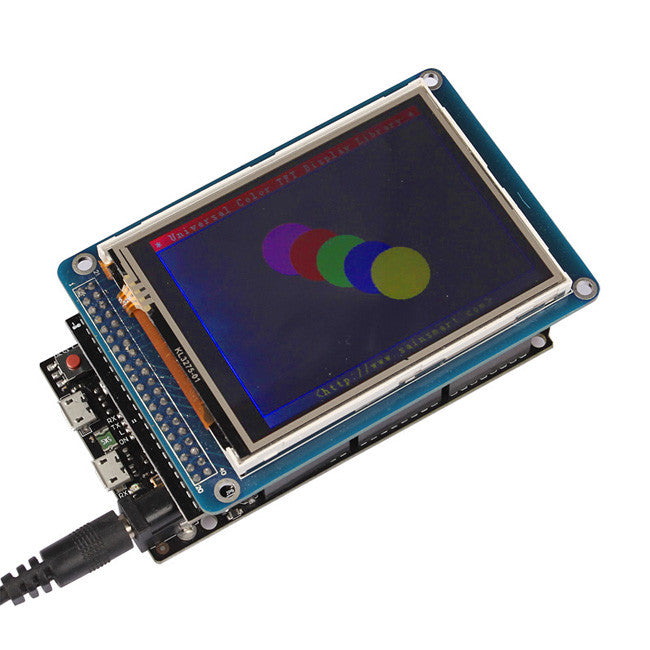

Yes, the kit includes both the 3.2-inch TFT Touch LCD and the necessary shield to connect it. This makes it a plug-and-play solution for projects requiring a graphical user interface, saving you the hassle of sourcing compatible display hardware separately.

The Direct Memory Access (DMA) controller allows the board to move data between memory and peripherals without involving the main CPU. This offloads repetitive tasks, freeing up the processor to focus on your primary application logic and improving overall system performance.

They serve different functions. One port is typically used for standard communication and power, while the other is often used for native USB support, allowing the board to act as a USB device like a keyboard or mouse.
