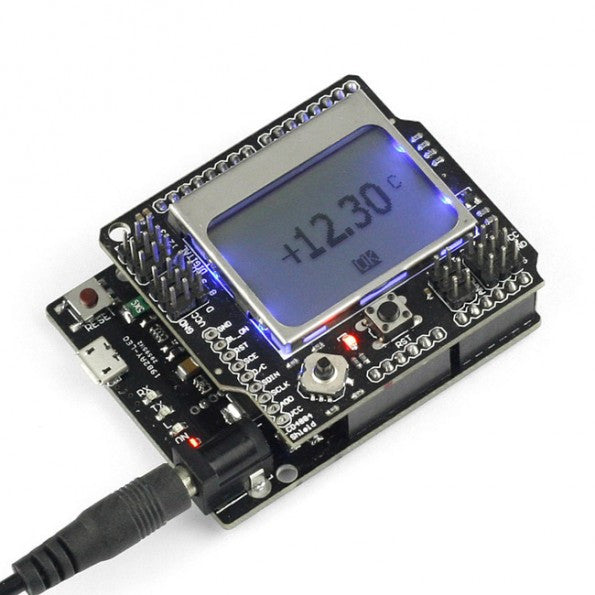

SainSmart Leonardo R3

The ATmega32u4 features built-in USB communication, which allows the board to emulate a mouse or keyboard directly when connected to a computer. This makes it particularly useful for HID (Human Interface Device) projects compared to boards that require a separate chip for USB conversion.

Yes, the shield is designed to interface via SPI and is compatible with common Arduino libraries. You will need to ensure you have the specific library for the 4884 display to handle the character rendering and backlight control.

Absolutely. The board supports flexible power options, including an external power adapter or a battery pack, provided they supply a stable 5V. This makes it suitable for portable projects where a computer connection isn't available.

The 5 DOF (Degrees of Freedom) joystick provides a tactile way to interact with your projects, allowing for directional input (up, down, left, right) and a center click. It is ideal for navigating menus on the included LCD or controlling movement in simple games.

Because it uses the ATmega32u4, it is generally recognized by the Arduino IDE as a Leonardo board without needing extra drivers on most modern operating systems. If you encounter issues, ensure your IDE is set to the correct board type and COM port.

With 32 KB of flash memory—minus the 4 KB used by the bootloader—you have 28 KB available for your code. This is plenty for most sensor-based projects and display interfaces, though it may become tight if you are running complex graphics or large data logging libraries.
