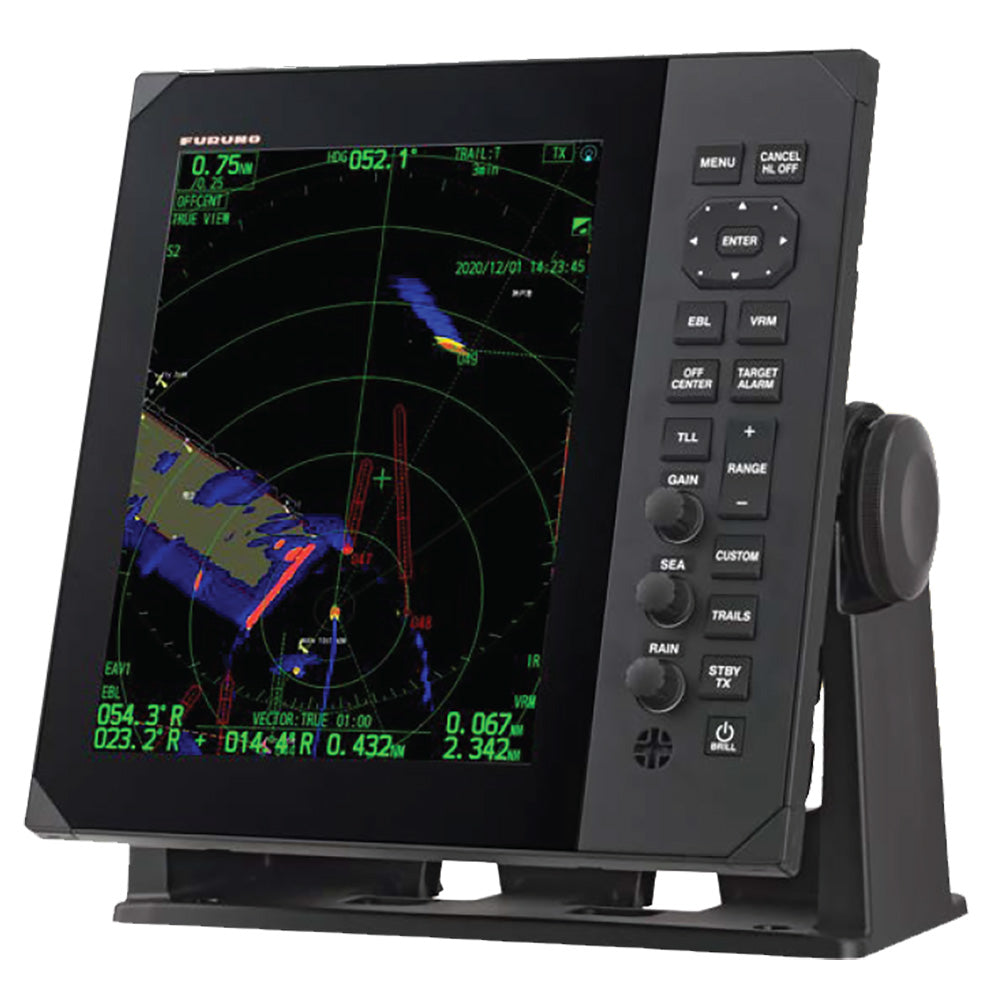

Furuno FR12 Marine Radar Display

The 12.1-inch portrait display is specifically optimized for marine navigation, allowing you to see more of the path ahead of your vessel. This orientation is particularly helpful for viewing radar data alongside chart overlays without sacrificing critical situational awareness.

The FR12 is compatible with a wide range of Furuno DRS antennas, including both pulse and solid-state models. However, to access advanced features like Target Analyzer and RezBoost beam sharpening, you must pair the display with a compatible solid-state sensor.

The Risk Visualizer provides an immediate, color-coded assessment of potential collision threats in your vicinity. It simplifies complex radar data into an intuitive display, helping you identify and react to hazardous targets much faster than traditional radar plotting.

Yes, the FR12 supports radar overlay when paired with MapMedia MM3D charts. This integration allows you to see radar echoes directly on top of your chart plotter, providing a clearer picture of your surroundings and potential obstacles.

The display is rated IP55 on the front panel and IP22 on the rear, meaning it is protected against water spray from the front but should be mounted in a protected area away from direct exposure to the elements. It is designed to operate reliably in temperatures ranging from -15°C to +55°C.

The FR12 features a straightforward interface including NMEA0183, NMEA2000, and LAN ports for connectivity. While it is powerful, it is designed to integrate into standard marine electronic suites without requiring an overly complex network architecture.
