Camplex HF-OCSMPTE-BO opticalCON DUO SMPTE to Duplex LC

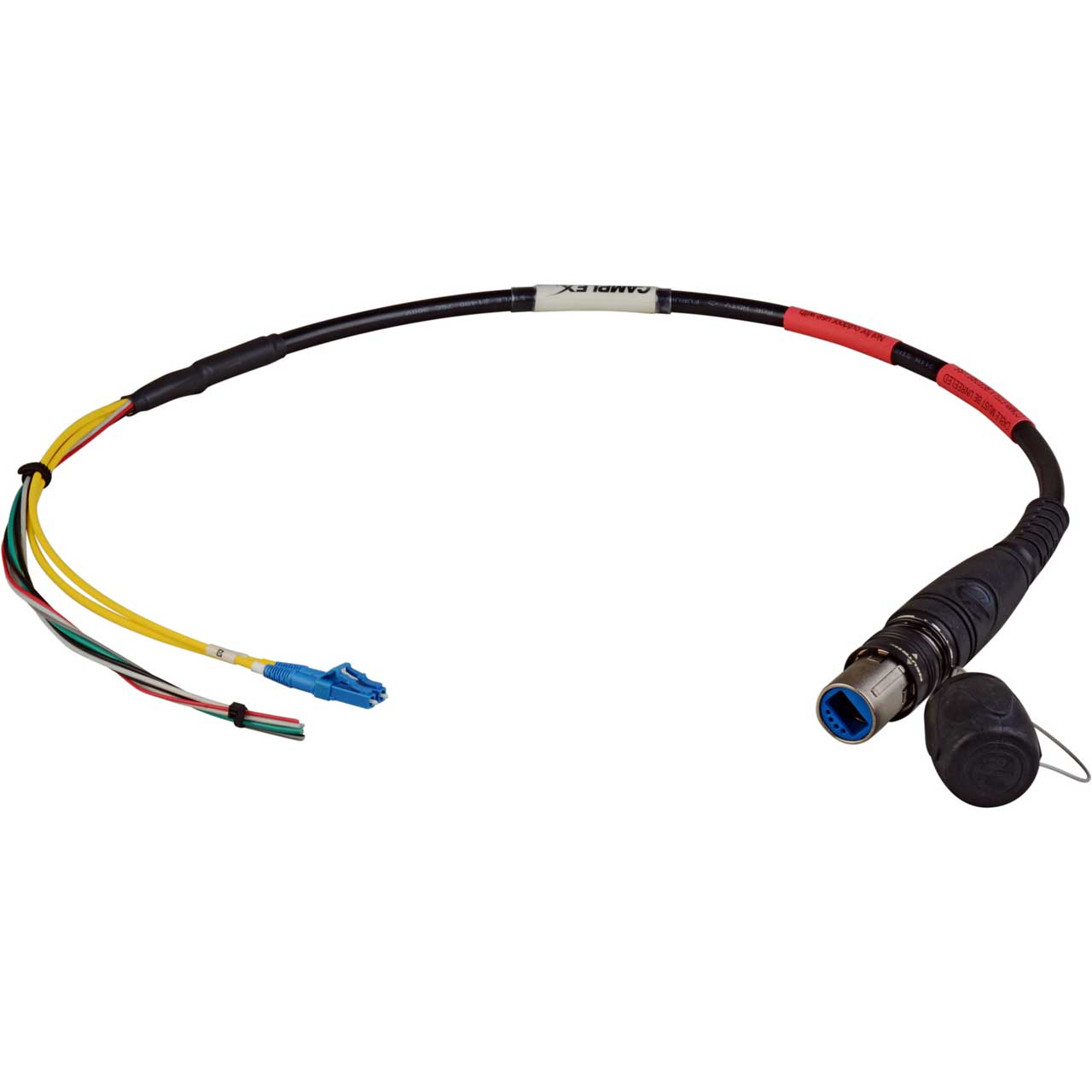

This cable is designed to bridge professional broadcast equipment using the Neutrik opticalCON DUO SMPTE standard to standard duplex LC interfaces. It is specifically built to integrate fiber optic data transmission with power and auxiliary signals in a single, ruggedized cable.

Yes, it is engineered for field use with a durable polyurethane (PUR) jacket and waterproof caps to protect the connection points. The ruggedized SMPTE 311M construction and braided shielding provide the necessary durability to withstand harsh conditions.

The connector features an integrated mechanical shutter that automatically closes when the cable is unplugged. This protects the fiber end-face from dust, debris, and physical damage when not in use.

The cable includes 16 or 17 AWG auxiliary conductors for power and 24 AWG conductors for data. While it is built for professional broadcast standards, ensure your specific equipment power requirements align with these gauge specifications.

The cable is machine-polished to ensure low optical loss and meets GR-326-CORE testing standards. With an optical back reflection of less than -55dB, it provides the high-fidelity signal performance required for professional broadcast and audio-visual applications.

Yes, the cable is CMR rated and has passed the UL1666 flame test, making it suitable for vertical installations in riser spaces within buildings.
