SR Suntour NCX Suspension Seatpost

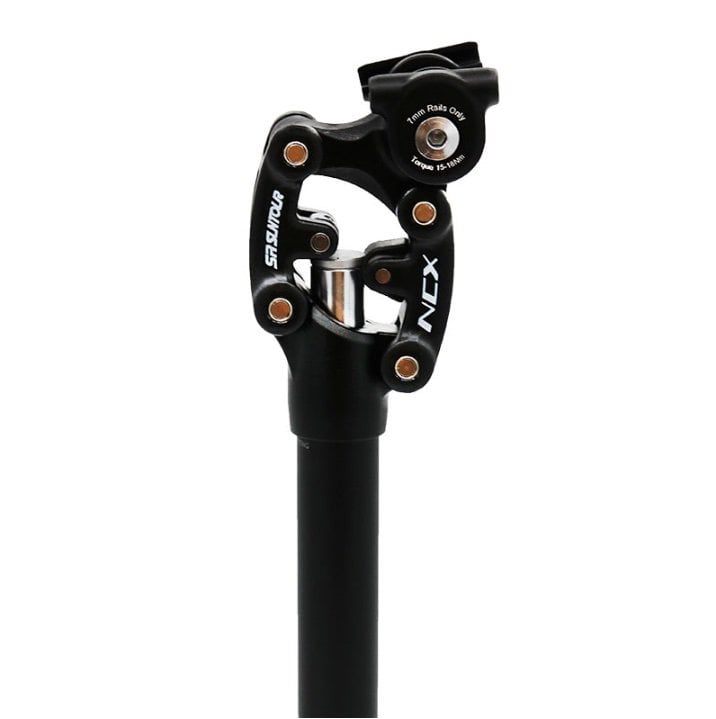

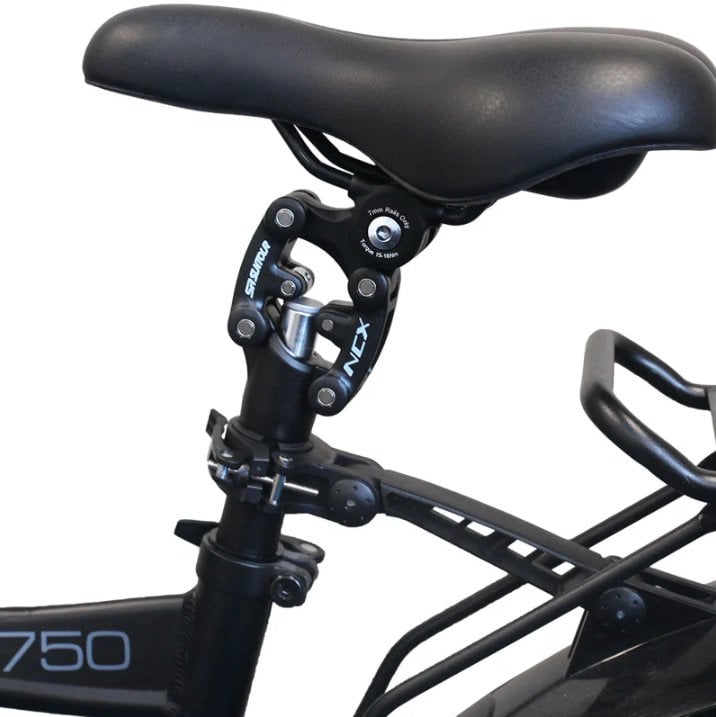

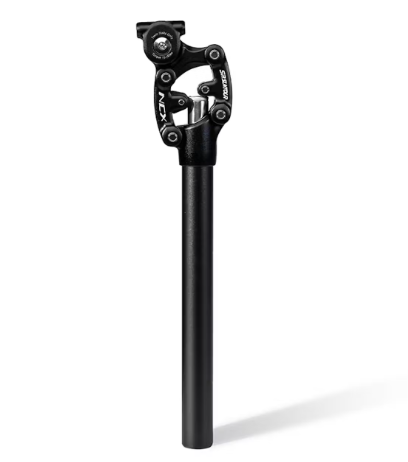

Unlike traditional telescopic posts that compress vertically, the NCX uses a parallelogram linkage that moves backward and down. This motion effectively absorbs bumps while keeping the saddle angle consistent, which prevents the awkward tilting sensation common in cheaper suspension designs.

Yes, the seatpost features a preload adjuster at the base of the unit. You can tighten or loosen the coil spring to fine-tune the tension based on your weight and riding preference.

This model has a 27.2 mm diameter, which is a common size for many road and hybrid bikes. If your frame requires a different diameter, you will need to use a seatpost shim to ensure a secure, safe fit.

The SR Suntour NCX is rated for a maximum rider weight of 220 lbs. Exceeding this limit may compromise the structural integrity of the linkage and reduce the effectiveness of the suspension.

You must ensure at least 100 mm of the seatpost remains inside your frame's seat tube. Always check your frame manufacturer's guidelines as well, as some frames may require a deeper insertion than the post itself.

The NCX is designed to isolate you from road vibrations without creating a 'bouncy' feel that wastes energy. While it adds a small amount of weight compared to a rigid post, most riders find the comfort benefits far outweigh the minor weight penalty.
